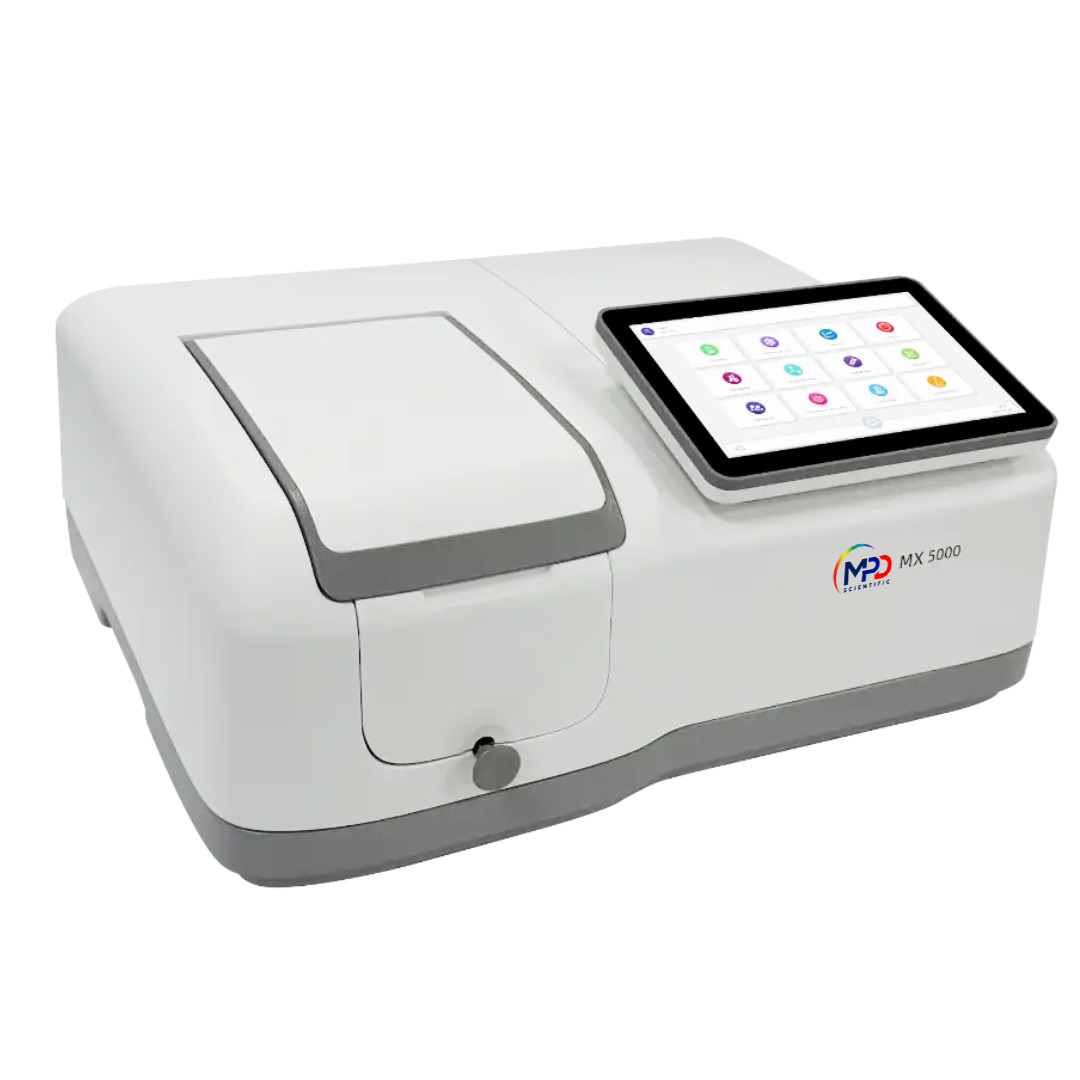

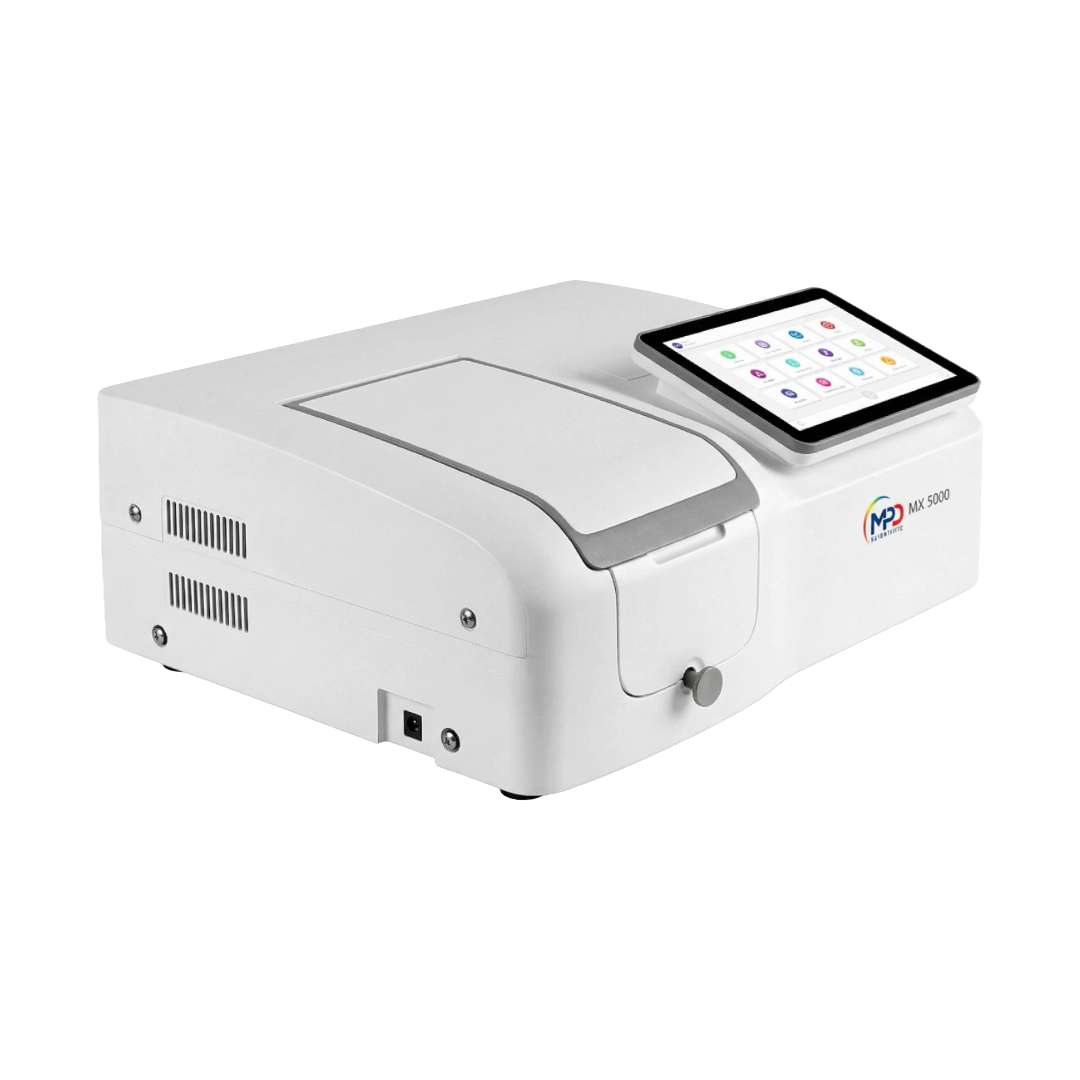

MX5000 Split-Beam UV-Vis Spectrophotometer

Split-Beam Intelligence with Full Regulatory Compliance

$8,376.00

MX5000 Split-Beam UV-Vis Spectrophotometer

Specifications Description Applications Contact

Split-beam UV-Vis spectrophotometer, 190–1100 nm, 0.3 nm resolution, 2 nm bandwidth, 8-inch 1280×800 TFT touchscreen, flashing xenon lamp.

The MX5000 is a high-performance split-beam UV-Vis spectrophotometer offering broad spectral coverage from 190 to 1100 nm with 0.3 nm wavelength resolution and 2 nm spectral bandwidth. The split-beam optical design continuously references the light source, compensating in real time for lamp fluctuations to deliver outstanding baseline stability and measurement accuracy. The flashing xenon lamp provides consistent output with exceptional longevity, eliminating warm-up time and reducing maintenance. An 8-inch 1280×800 TFT touchscreen interface makes method setup and data review intuitive and efficient, suitable for research, quality control, and pharmaceutical laboratory applications.

Beam Design	Ratio/split-beam
Wavelength Range	190–1,100 nm
Spectral Resolution	0.3 nm
Bandwidth	2.0 nm
Light Source	Flashing Xenon
Detector	Dual Silicon Photodiode
Display Type	Color TFT Touchscreen
Display Size	8.0"
Display Resolution	1280×800
Certification	CE
Warranty	1 year

Key Features

Split-Beam Optical Design
Continuously references the light source in real time to compensate for lamp fluctuations, delivering outstanding baseline stability and measurement accuracy without the need for frequent re-blanking.

Wide Wavelength Range: 190–1100 nm
Full UV, visible, and near-infrared coverage in a single instrument supports a broad range of applications including pharmaceutical analysis, protein and nucleic acid quantification, colorimetric assays, and material characterization.

High Spectral Resolution: 0.3 nm
Exceptional 0.3 nm resolution with a 2 nm spectral bandwidth enables precise differentiation of closely spaced spectral features, making it well-suited for demanding quantitative and qualitative analytical workflows.

Flashing Xenon Light Source
Warm-up-free xenon lamp delivers instant, stable, and consistent illumination across the full 190–1100 nm range from the moment of switch-on, while its exceptional longevity reduces maintenance requirements and lamp replacement costs.

Applications

The MX5000 is designed for pharmaceutical analysis and validation, research and development laboratories, environmental and water quality testing, chemical and material analysis, and food and beverage quality assurance.
