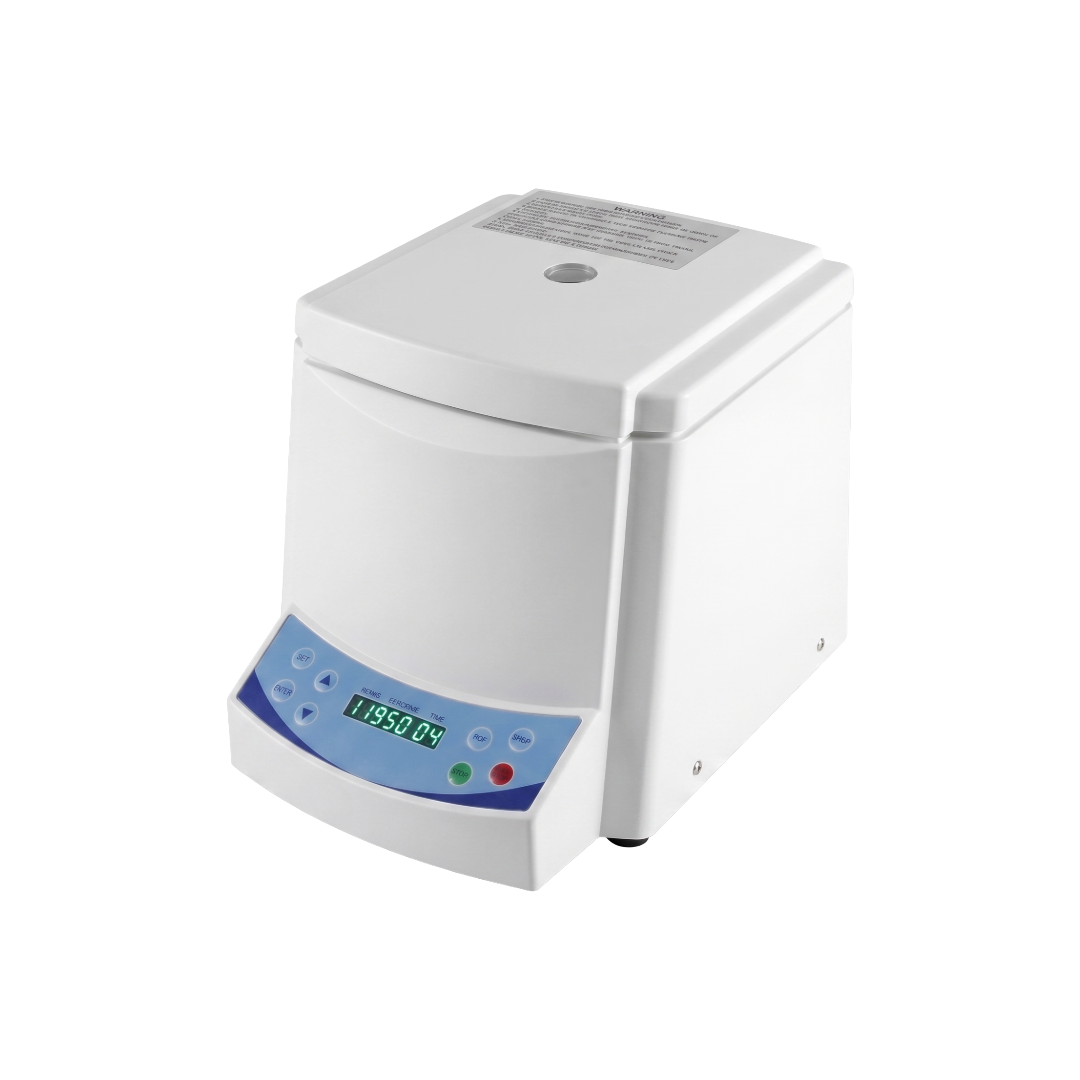

CH1345 Microhematocrit Centrifuge

Fast, Reliable Packed Cell Volume Determination for Clinical and Veterinary Workflows

Specifications Description Applications Contact

The CH1345 Microhematocrit Centrifuge is engineered for fast, reliable packed cell volume (PCV) determination in clinical, veterinary, and research laboratories. Operating at a fixed speed of 12,000 rpm, it achieves rapid separation of blood components in standard microhematocrit capillary tubes. The adjustable timer (1–7 minutes, default 3 minutes) provides operator flexibility while accommodating standardized clinical protocols. The compact, benchtop design minimizes laboratory footprint without sacrificing capacity or performance.

Maximum Rotational Speed	12,000 rpm
Maximum Relative Centrifugal Force	13,500 × g
Maximum Capacity	24 capillaries
Rotational Speed Accuracy	±30 rpm
Timer Range	1–7 minutes (Default 3 minutes)
Noise Level	<65 dB(A)
Power Supply	AC 220V 50Hz
Power Consumption	300W
Dimensions (L×W×H)	230×310×240mm
Packing Size (L×W×H)	290×400×330mm
Gross Weight	9kg
Rotor (24-place)	24 capillaries, 12,000 rpm, 13,500 × g
Certification	CE

Key Features

Fixed 12,000 RPM Operating Speed
Delivers fast, consistent packed cell volume (PCV) determination with no speed adjustment required, ensuring reproducible results across every run.

Adjustable Timer (1–7 Minutes)
Flexible timer with a preset 3-minute default supports standard clinical protocols while giving operators the ability to customize run times for specific applications.

Optimized for Microhematocrit Capillary Tubes
Specifically designed to accommodate standard microhematocrit capillary tubes used in clinical, veterinary, and research laboratory settings.

Compact Benchtop Design
Space-saving footprint makes it easy to integrate into busy lab environments without sacrificing capacity or centrifugation performance.

Simple, Reliable Operation
Straightforward controls and fixed-speed operation minimize user error and make it ideal for routine, high-throughput clinical workflows.

Broad Laboratory Compatibility
Suitable for clinical, veterinary, and research applications requiring rapid blood component separation and PCV analysis.

Applications

The CH1345 Microhematocrit Centrifuge delivers rapid, reproducible packed cell volume (PCV) determination at a fixed 12,000 rpm, making it an ideal solution for routine hematocrit testing in clinical, veterinary, and research laboratory settings. Engineered for standard microhematocrit capillary tubes, the CH1345 achieves efficient separation of blood components in as little as 1 minute, with an adjustable timer (1–7 minutes, 3-minute default) that supports both standardized clinical protocols and operator-defined run times. Its compact benchtop footprint makes it easy to integrate into space-constrained environments without compromising throughput or performance, delivering the speed and simplicity that high-volume diagnostic workflows demand.
