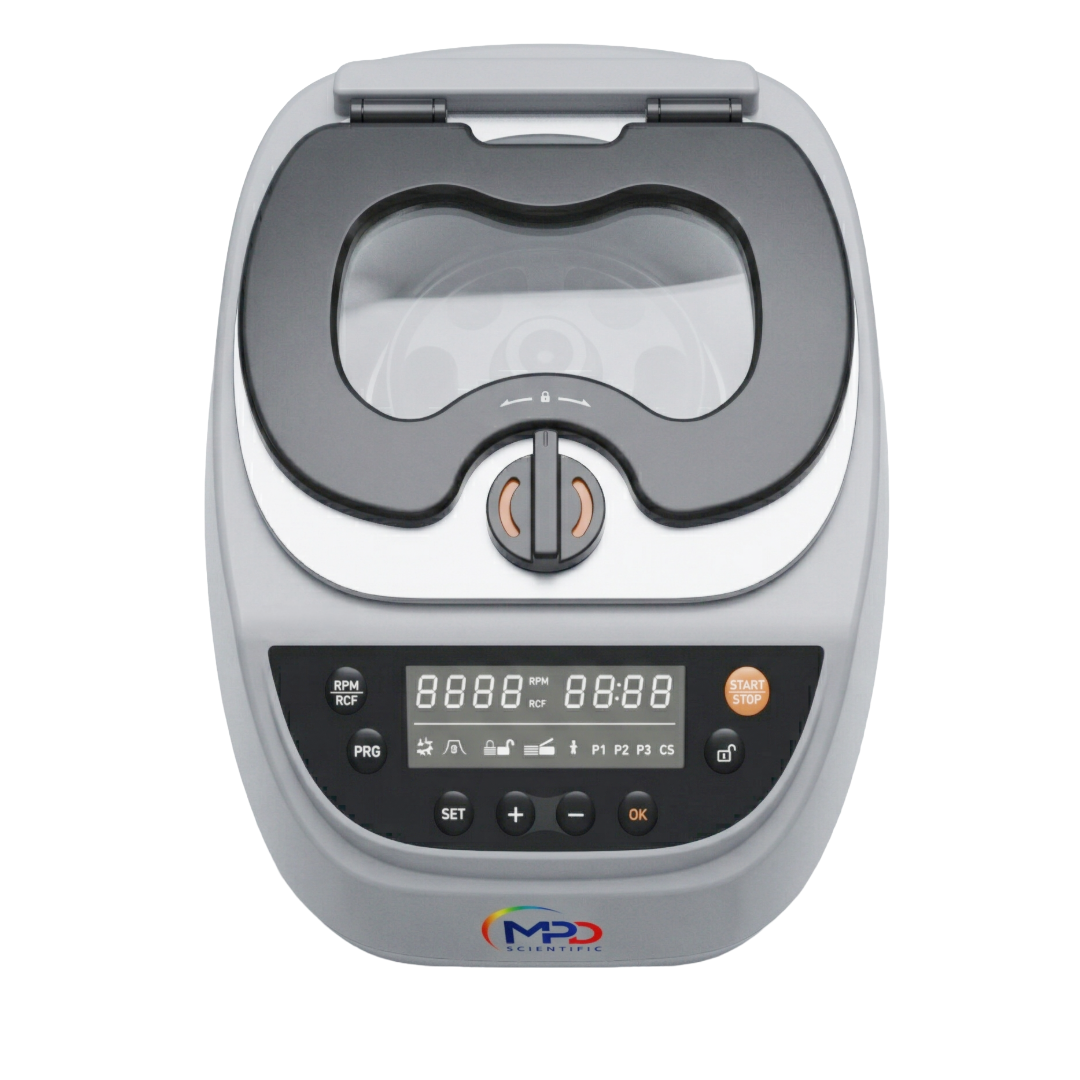

CS Compact Centrifuge Series

Compact Performance for Everyday Centrifugation

Select Configuration
Contact for Details

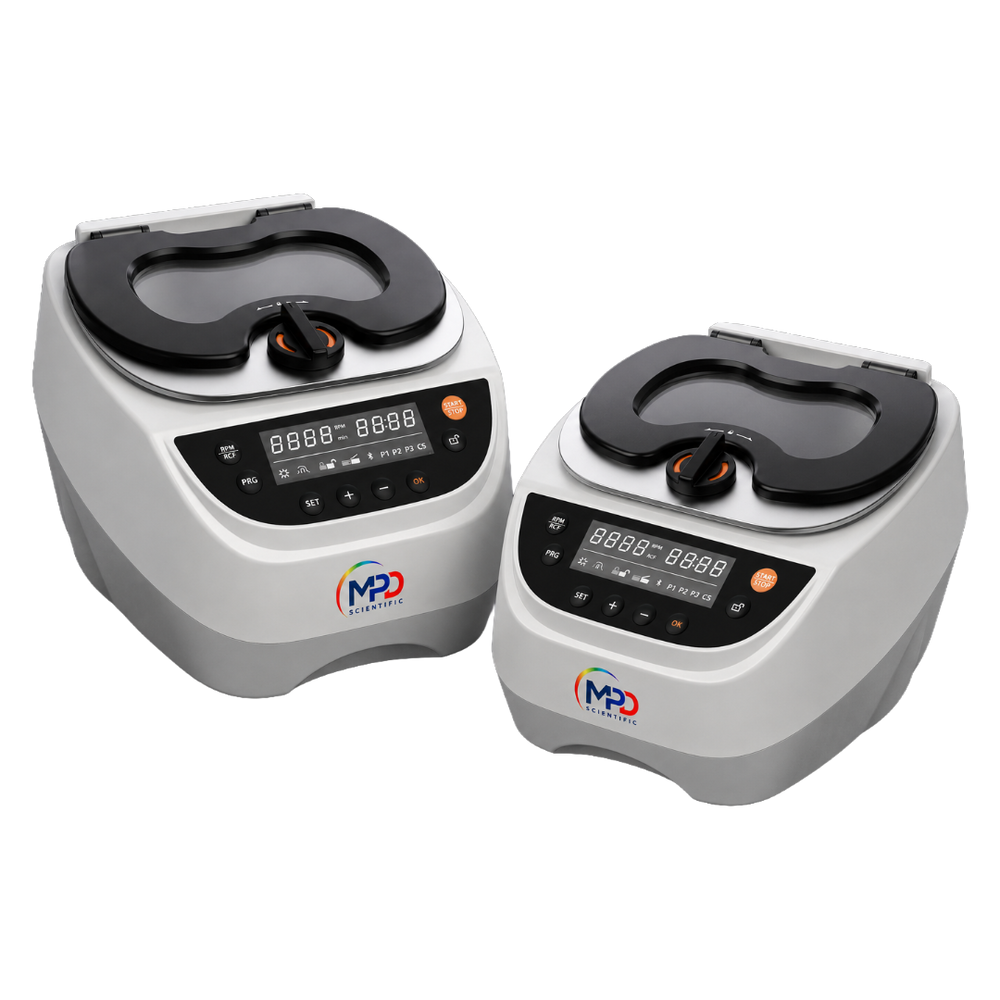

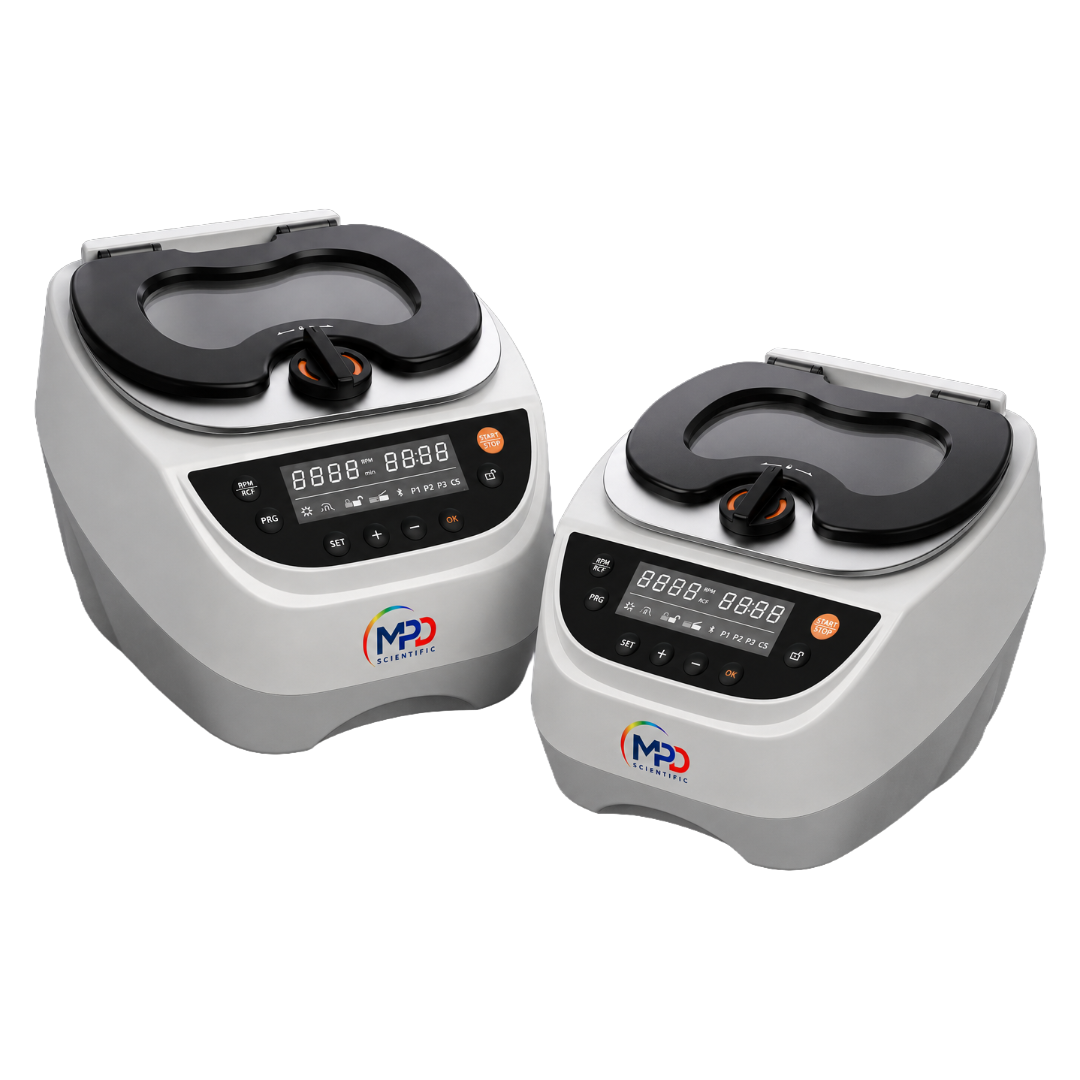

CS Compact Centrifuge Series
CS Compact Centrifuge Series 1 CS Compact Centrifuge Series 2 CS Compact Centrifuge Series 3
Specifications Description Applications Contact

The CS Compact Centrifuge series is engineered for reliable everyday sample preparation across clinical, veterinary, and research environments. Built around a space-saving footprint and universal voltage compatibility, it delivers consistent performance without the complexity of larger benchtop systems.

Available in three configurations to match your workflow — choose between a fixed-speed or variable-speed angle rotor for standard serum and plasma separation, or a variable-speed horizontal rotor for applications requiring swing-out separation. All configurations accommodate a wide range of common tube formats natively, with adapters available for smaller tube sizes.

Whether you're processing blood samples in a clinical setting, running routine separations in a veterinary practice, or preparing samples in a research lab, the CS Compact Centrifuge offers the right combination of simplicity, flexibility, and reliability.

Rotor Type Fixed angle (CS1385 & CS2385) / Horizontal swing-out (CS1465 & CS2465)
Speed Range 3,400 rpm (CS1385 & CS1465) / 500–4,000 rpm (CS2385 & CS1465)
Maximum RCF 1,628 × g (CS2385 & CS2485) / 1,712 × g (CS1465 & CS1385)
Number of Positions 8 (CS1385 & CS2385 & CS2465) / 6 (CS1465)
Tube Types (native) Φ16 × 125–100 mm
Tube Types (adapter) Φ13 × 75 mm, Φ10 × 40 mm (all models)
Power Supply AC 100–240V, 50/60Hz (auto-switching)
Power Consumption 120W
Dimensions (W×D×H) 316×394×250mm
Weight 5kg or 11 lbs

Available Configurations

Select a configuration below to update your order.

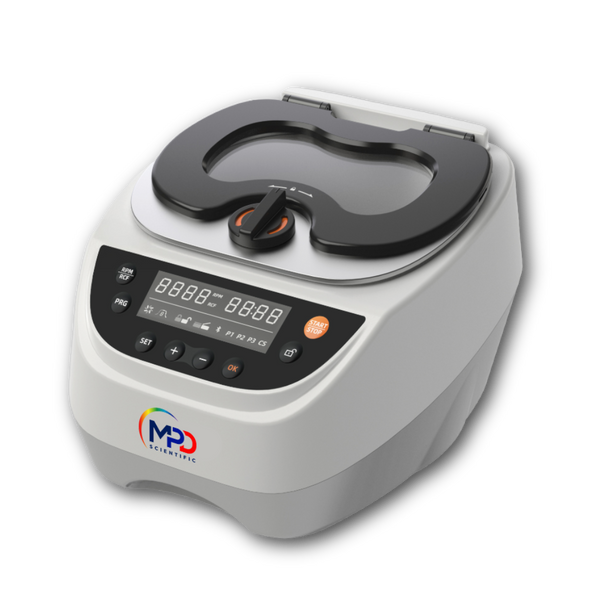

Fixed-Speed Centrifuge 8-Place Fixed Angle

CS1385

Fixed-Speed Centrifuge 8-Place Fixed Angle

  • 8- Place Fixed Angle Rotor
  • Fixed speed at 3,400 rpm with 1,628 × g RCF

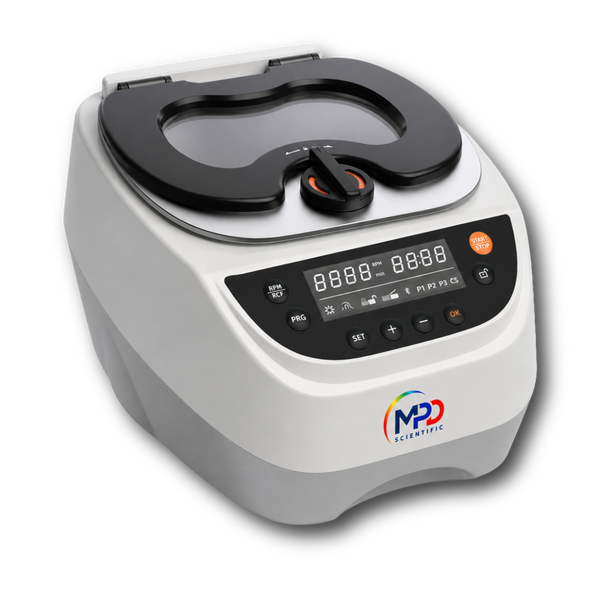

Variable-Speed Centrifuge 8-Place Fixed Angle

CS2385

Variable-Speed Centrifuge 8-Place Fixed Angle

  • 8-place Fixed Angle Rotor
  • 500–4,000 RPM
Fixed-Speed Centrifuge 6-Place Horizontal Rotor

CS1465

Fixed-Speed Centrifuge 6-Place Horizontal Rotor

  • 6-place Horizontal Rotor
  • 3,400 RPM
Variable-Speed Centrifuge 6-Place Horizontal Rotor

CS2465

Variable-Speed Centrifuge 6-Place Horizontal Rotor

  • 6-place Horizontal Rotor
  • 500–4,000 RPM

Key Features

Compact Benchtop Design
Space-saving footprint fits easily on any laboratory bench without sacrificing capacity or performance.

Universal Voltage Compatibility
AC 100–240V auto-switching power supply makes the CS series ready for use in any lab environment worldwide.

Flexible Rotor Options
Choose between a fixed angle rotor for standard serum and plasma separation or a horizontal swing-out rotor for applications requiring swing-out separation.

Fixed & Variable Speed Configurations
Select a fixed 3,400 rpm model for straightforward clinical workflows or a variable 500–4,000 rpm model for greater flexibility across different sample types.

Broad Tube Compatibility
Natively supports Φ16 mm tubes across multiple lengths, with adapters available for Φ13 × 75 mm and Φ10 × 40 mm tubes.

Preset Program Memory
Store up to 3 preset parameter groups for time and speed settings, reducing setup time and minimizing user error across repeated workflows.

Applications

The CS Compact Centrifuge series is suited for a broad range of routine separation and preparation tasks across clinical, veterinary, and research environments. In clinical laboratories, it handles everyday workflows including serum and plasma separation from whole blood, hematocrit determination, urinalysis preparation, and microfilter tube centrifugation. Veterinary practices rely on it for blood sample processing, serum separation for in-house biochemistry panels, and rapid condensation collection from microtubes. In research settings, the series supports cell culture pellet preparation, DNA and RNA extraction workflows, protein precipitation, and general sample concentration and clarification. With fixed and variable speed configurations and both angle and horizontal rotor options available, the CS series adapts to the specific separation requirements of each application without the need for multiple instruments.
