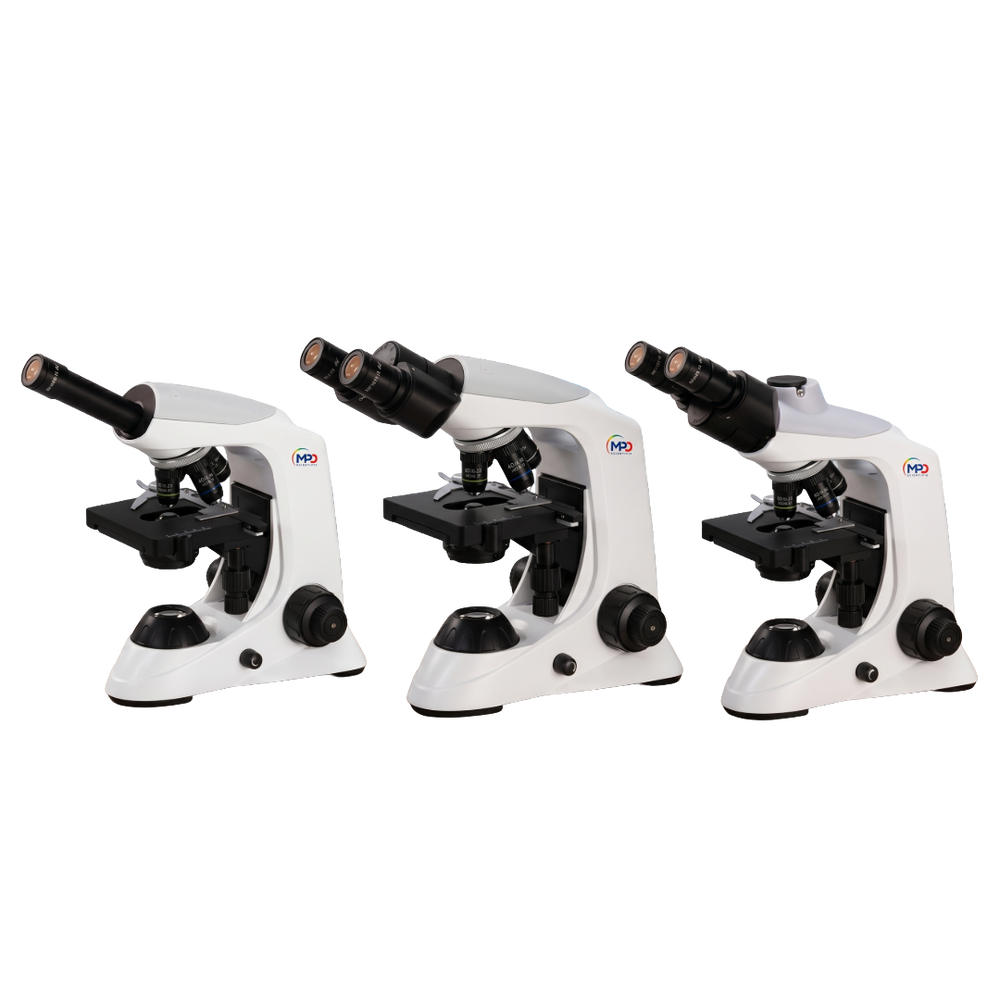

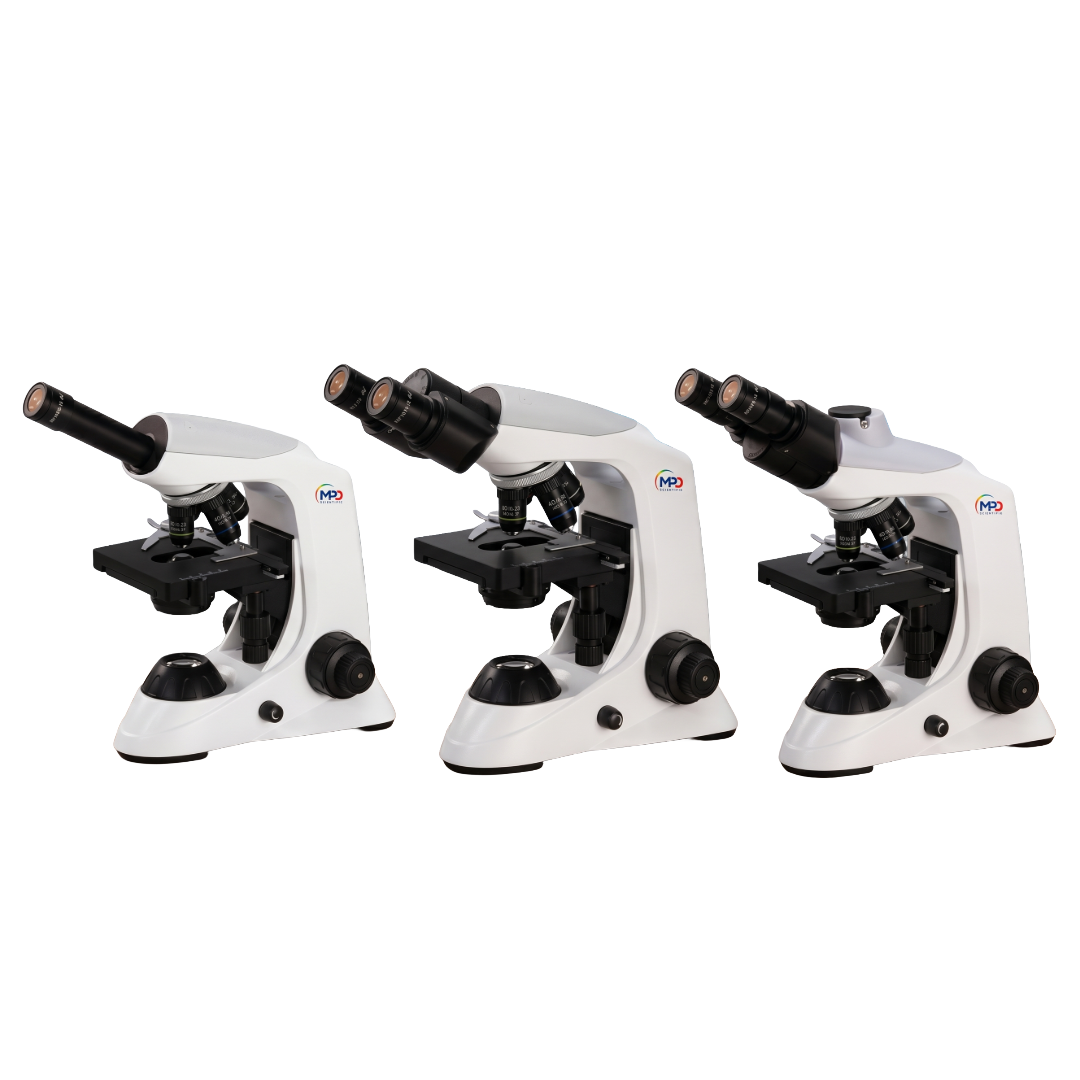

MP200 Series Microscopes

MP200 Series Microscopes

MP201 / MP201PL / MP202 / MP202PL / MP203 / MP203PL — Educational Microscopes
ISO 13485:2016 Certified FDA Registered Facility
  • 140×135mm Stage
  • 40×–1000× Coverage
$651.00
Estimated Delivery:Oct 04 - Oct 08
Guarantee safe & secure checkout

Overview

The MP200 Series is a versatile line of educational compound microscopes engineered for classroom, laboratory, and training environments. Available in monocular, binocular, and trinocular configurations, the MP200 Series delivers sharp, high-contrast imaging across a wide magnification range — making it an ideal choice for institutions that need reliable performance without compromise.

 MP200 Series combines optical precision with a durable, user-friendly design. LED illumination ensures consistent, energy-efficient lighting, while coaxial coarse and fine focusing gives users smooth, accurate control at every magnification level. Whether used for basic cell biology, microbiology, or introductory pathology coursework, the MP200 Series is designed to support confident, repeatable results.

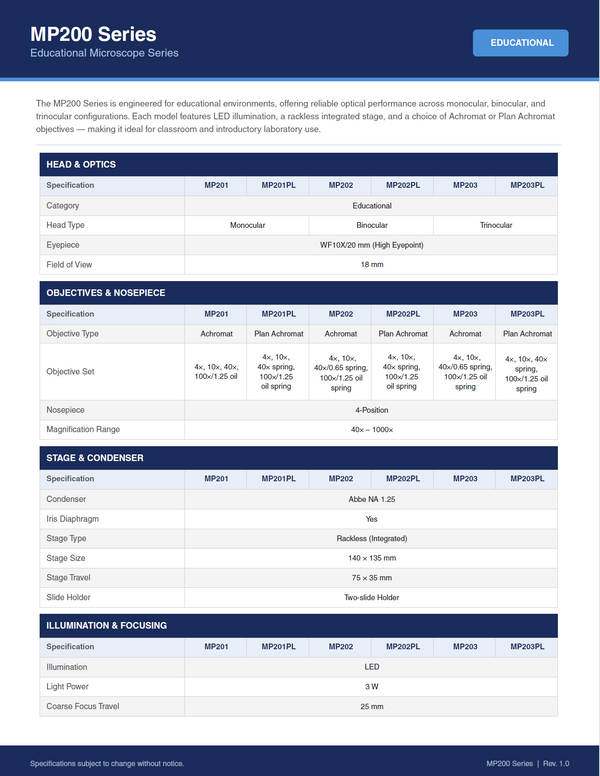

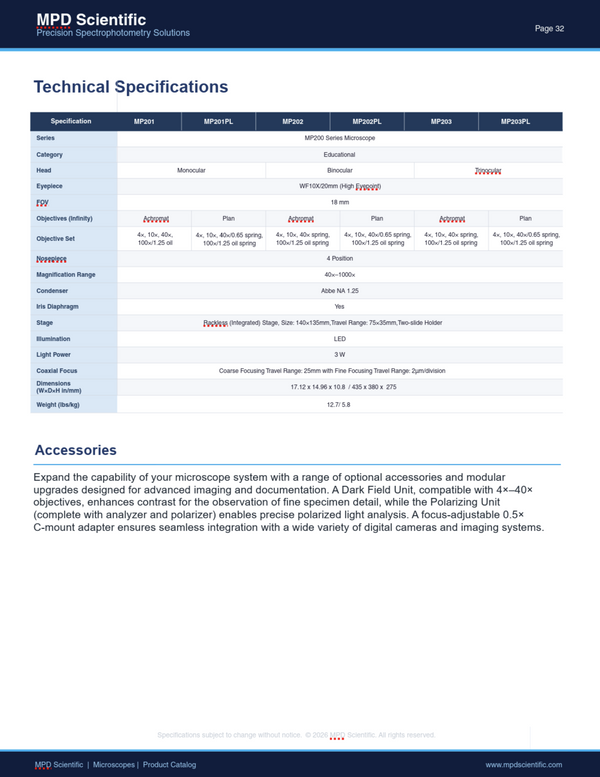

Specifications

Series: MP200
Category: Educational Compound Microscope
Head Options: Monocular (MP201); Binocular (MP202); Trinocular (MP203)
Eyepiece: WF10X/20mm High Eyepoint; FOV 18mm
Objectives: Achromat; Plan Achromat
Nosepiece: 4-Position Rotating
Magnification Range: 40×–1000×
Condenser: Abbe NA 1.25
Iris Diaphragm: Yes
Stage: Rackless Integrated; 140×135mm; Travel Range 75×35mm; Two-Slide Holder
Illumination: LED
Light Power: 3W
Focusing: Coaxial Coarse & Fine; Coarse Travel Range 25mm; Fine Travel Range 2µm/division
Dimensions (W×D×H): 17.12 × 14.96 × 10.8 in / 435 × 380 × 275 mm
Weight: 12.7 lbs / 5.8 kg

Applications

MP200 Series Microscopes

The MP200 Series is well suited for a wide range of educational and light laboratory use cases, including:

Microbiology — Bacterial morphology, gram staining, and culture analysis for introductory microbiology labs.
Histology & Pathology Training — Slide-based tissue examination using oil immersion objectives for higher-magnification detail.
Veterinary & Medical Education — Foundational microscopy training in clinical and pre-clinical programs.

Documents

MP200 Series Product Manual updated
PDF

Recommended Accessories

Bacteria Slide Set Of 12

Bacteria Slide Set Of 12

View →
Basic Prepared Slide Set, 25 Slides

Basic Prepared Slide Set, 25 Slides

View →

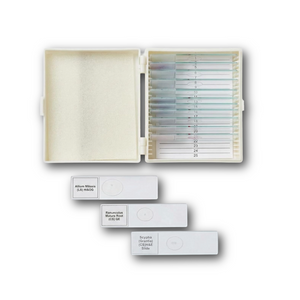

Biology Prepared Slide Set Of 16

Biology Prepared Slide Set Of 16

View →

Key Features

Infinity-Corrected Optics

Available in Achromat and Plan Achromat objective sets for sharp, high-contrast imaging across all magnification levels.

Wide Magnification Range

40×–1000× coverage with a 4-position nosepiece, suitable for a broad range of specimen types and educational applications.

High Eyepoint Eyepiece

WF10X/20mm wide-field eyepiece with 18mm FOV accommodates eyeglass wearers for comfortable extended use.

Rackless Integrated Stage

140×135mm stage with 75×35mm travel range and two-slide holder provides smooth, precise specimen navigation without rack pinch risk.

Available Configurations

Select a configuration below to update your order.

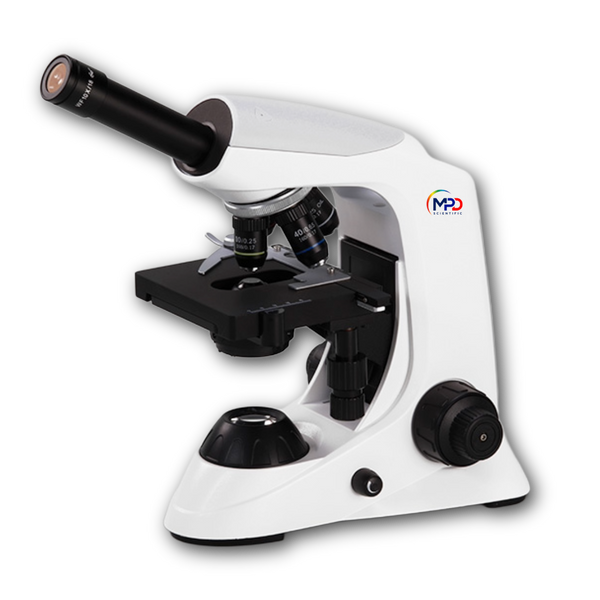

Monocular Educational Microscope Achromat

MP201

Monocular Educational Microscope Achromat

  • WF 10× eyepieces with ergonomic monocular viewing head for comfortable extended use
  • Available with standard infinity objectives

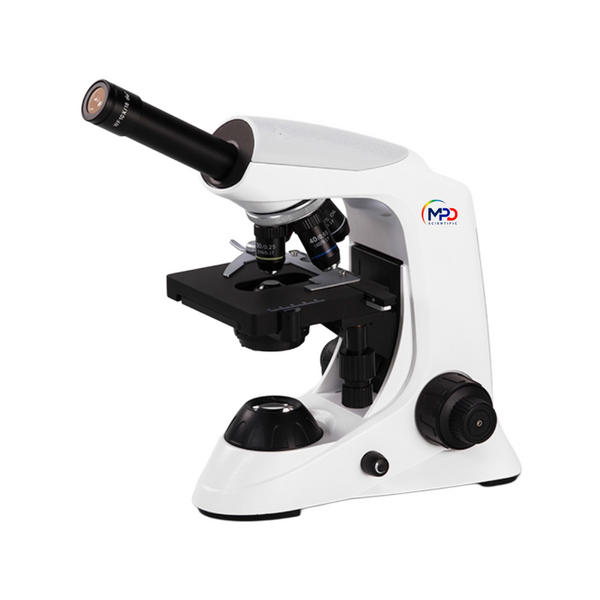

Monocular Educational Microscope Plan Objectives

MP201PL

Monocular Educational Microscope Plan Objectives

  • WF 10× eyepieces with ergonomic binocular viewing head for comfortable operation
  • Fully corrected plan infinity objectives for enhanced image flatness

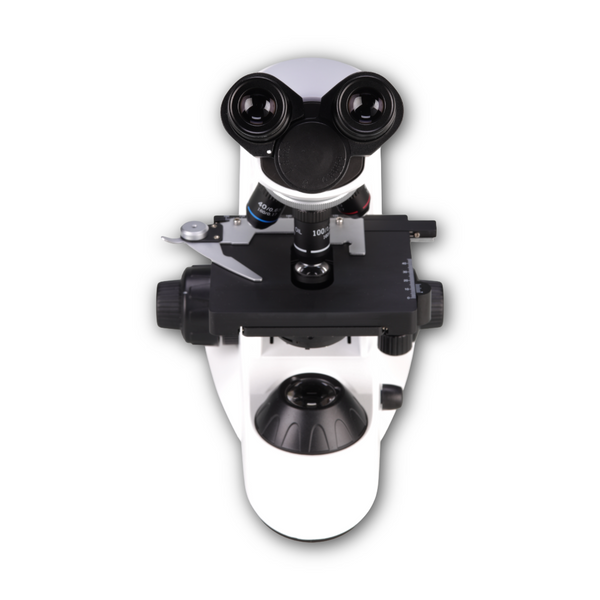

Binocular Educational Microscope Achromat

MP202

Binocular Educational Microscope Achromat

  • Infinity-corrected optical system designed for professional biological observation
  • Available with standard infinity objectives
Binocular Educational Microscope Plan Objectives

MP202PL

Binocular Educational Microscope Plan Objectives

  • Fully corrected plan infinity objectives for enhanced flat-field imaging

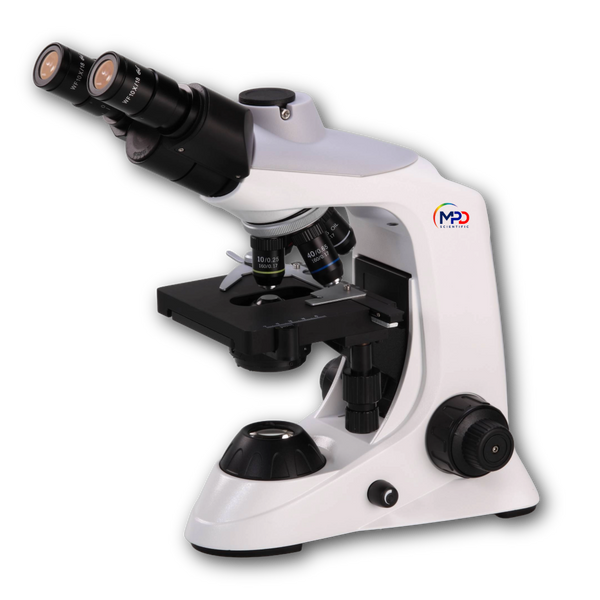

Trinocular Educational Microscope Achromat

MP203

Trinocular Educational Microscope Achromat

  • Trinocular compound microscope with achromat infinity objectives (4×/10×/40×/100×)
Trinocular Educational Microscope Plan Objectives

MP203PL

Trinocular Educational Microscope Plan Objectives

  • Trinocular compound microscope with plan infinity objectives for premium flat-field imaging
