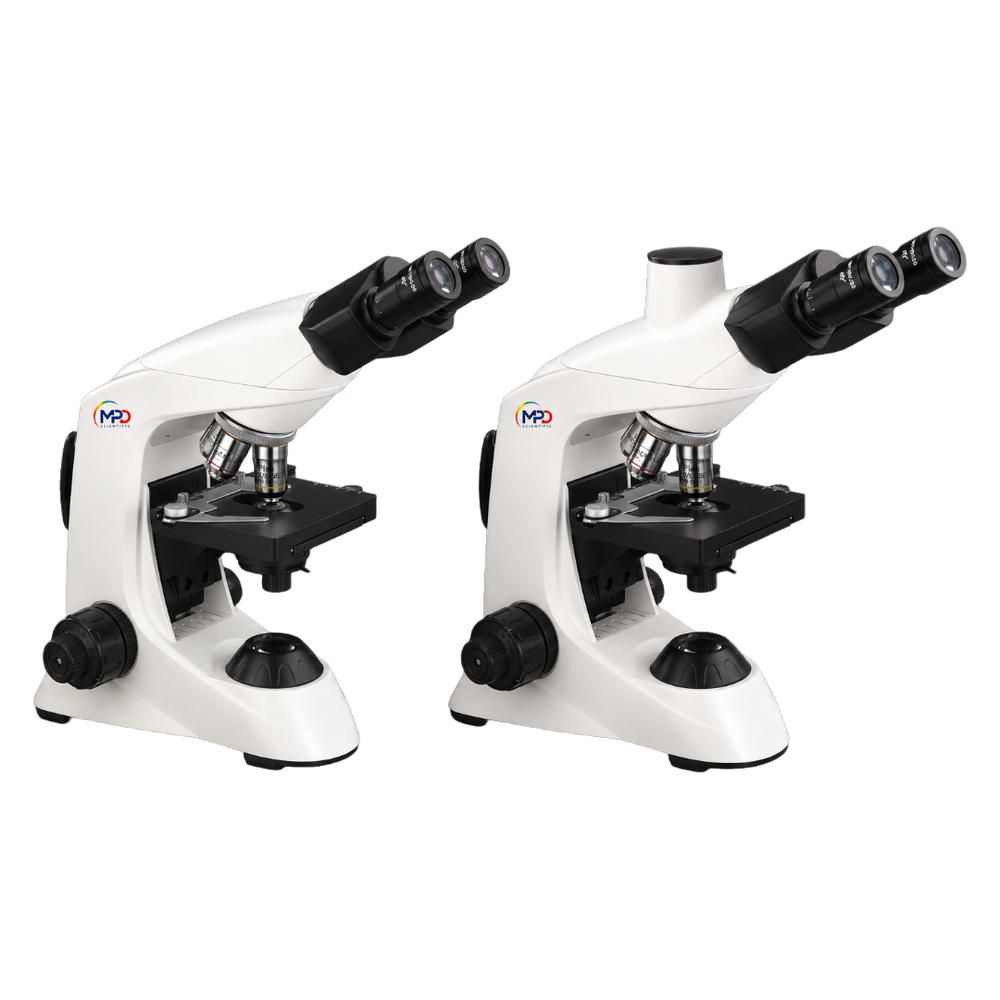

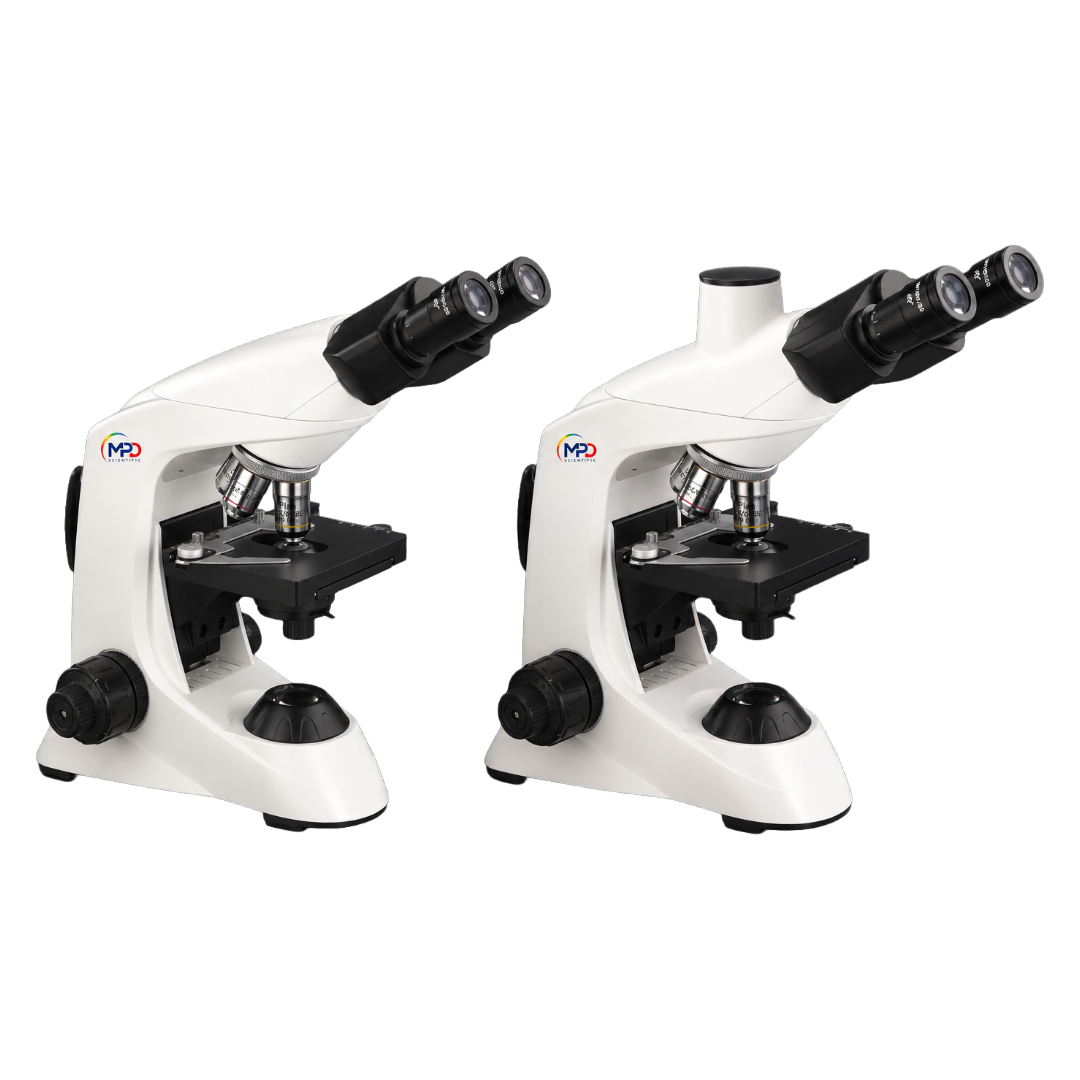

MP300 Series Biological Compound Microscope

MP302 / MP302SP / MP302PL / MP303 / MP303SP / MP303PL

ISO 13485:2016 Certified FDA Registered Facility

E-Plan; Plan SP; Plan (all infinity-corrected)
Trinocular models with 20:80 light split
WF10×/20mm; FOV 20mm

$1,466.00

Estimated Delivery:Oct 04 - Oct 08

Guarantee safe & secure checkout

Overview

The MP300 Series is a professional-grade line of biological compound microscopes engineered for research, clinical, and laboratory environments. Available in binocular and trinocular configurations, and across three objective tiers — E-Plan, Plan SP, and Plan — the MP300 Series offers a solution for every level of optical demand, from routine biological examination to high-resolution imaging and digital documentation.

Each model is built around infinity-corrected optics, an ergonomic Seidentopf head with 360° rotation, and a precision mechanical stage, delivering consistent, reliable performance across a wide range of specimens and workflows. The 3W LED illumination system paired with an Abbe NA 1.25 condenser ensures bright, uniform lighting at every magnification. Whether used for histology, pathology, microbiology, or clinical lab preparation, the MP300 Series provides the optical quality and ergonomic comfort required for extended daily use.

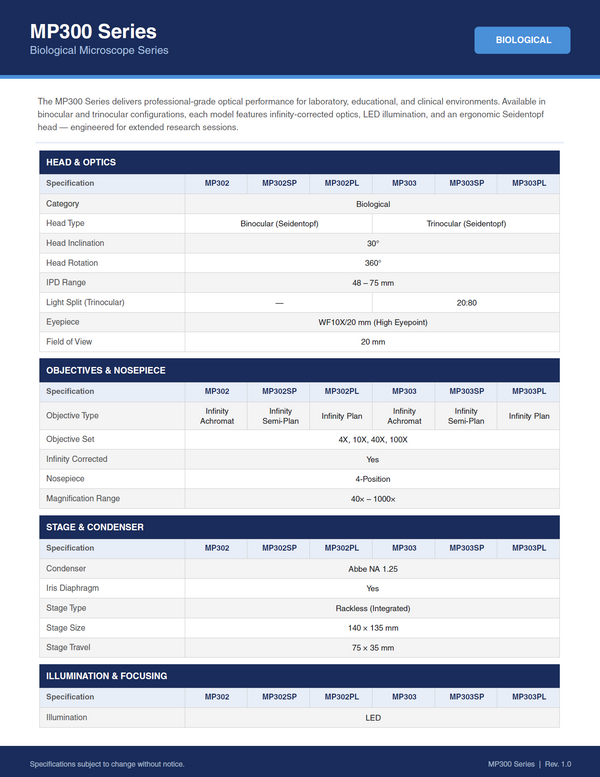

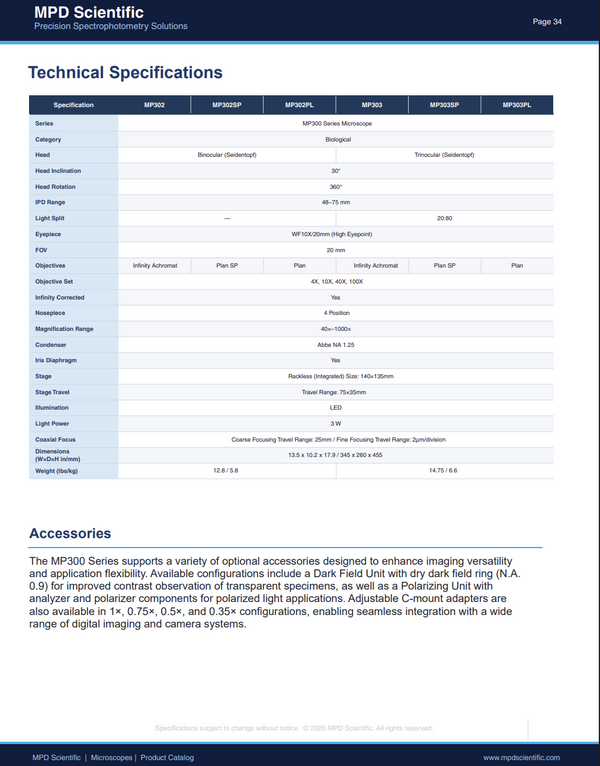

Specifications

Series: MP300
Category: Biological Compound Microscope
Head Options: Binocular (Seidentopf); Trinocular (Seidentopf)
Eyepiece: WF10×/20mm; FOV 20mm
Objective Options: E-Plan; Plan SP; Plan (all infinity-corrected)
Objective Set: 4×, 10×, 40×, 100×
Nosepiece: 4-Position Quad
Magnification Range: 40×–1000×
Head Inclination: 30°
Head Rotation: 360°
Interpupillary Distance: 48–75mm
Condenser: Abbe NA 1.25
Iris Diaphragm: Yes
Stage: Mechanical; 76×52mm Travel Range
Illumination: LED
Light Power: 3W
Trinocular Light Split: 20:80 (trinocular models)
Coaxial Focus: Yes
Weight: 5.8 kg (binocular); 6.7 kg (trinocular)
Compliance: CE
Warranty: 1 Year

Applications

Histology & Pathology — Flat-field Plan and Plan SP objectives make the MP300 Series well suited for tissue slide examination, staining analysis, and pathology workflows where image uniformity across the full field is critical.
Microbiology — Oil immersion at 100× with NA 1.25 condenser support enables detailed bacterial morphology, gram stain, and culture analysis.
Clinical Laboratory — Reliable brightfield compound imaging for routine specimen preparation, urinalysis, and hematology training.
Research & Academic Laboratories — Infinity-corrected optics and tiered objective options support a broad range of biological research and university-level science programs.
Digital Imaging & Documentation — Trinocular models with 20:80 light split are ideal for photomicrography, lab reporting, telepathology, and any workflow requiring simultaneous visual and camera output.

Documents

MP303

PDF

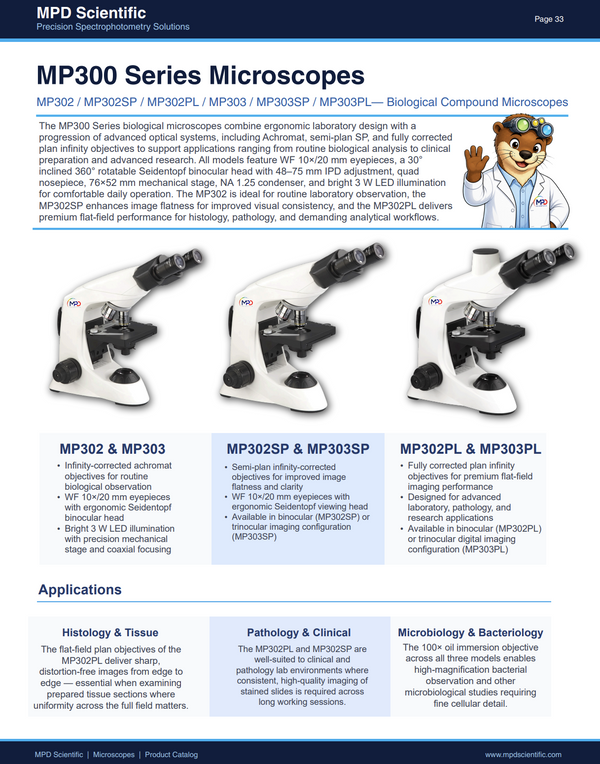

MP300 Series Product Manual

PDF

Key Features

Infinity-Corrected Optics Across Three Tiers

Choose from E-Plan, Plan SP, or fully corrected Plan objectives for the level of field flatness and image uniformity your application demands.

Wide Magnification Range

40×–1000× across a quad nosepiece, covering routine cell biology through oil immersion examination in a single instrument.

Ergonomic Seidentopf Head

30° inclination with full 360° rotation and 48–75mm IPD adjustment accommodates a wide range of users for comfortable extended sessions.

WF 10×/20mm Eyepieces

Wide-field eyepieces deliver a generous 20mm field of view for clear, spacious observation at every power level.

Precision Mechanical Stage

76×52mm travel range provides smooth, controlled specimen navigation for systematic scanning and repositioning.

Abbe NA 1.25 Condenser with Iris Diaphragm

Delivers optimized contrast and resolution at high magnifications with adjustable light control.

Available Configurations

Select a configuration below to update your order.

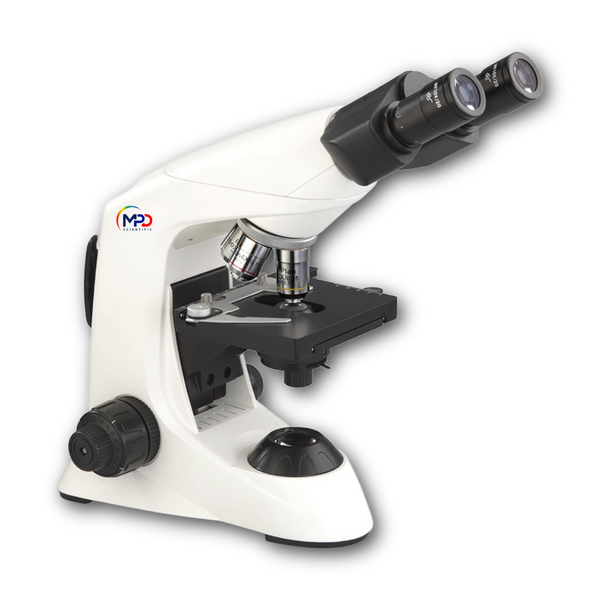

MP302

Binocular Biological Microscope Seidentopf Achromat

Infinity-corrected achromat objectives for routine biological observation

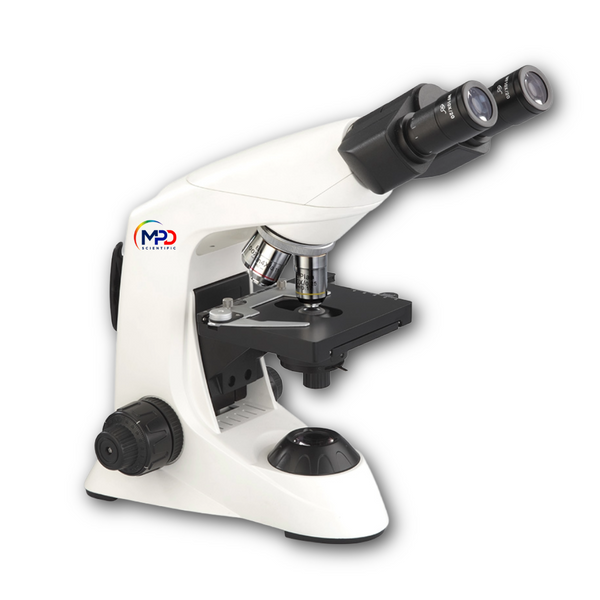

MP302SP

Binocular Biological Microscope Semi-Plan Objectives

Semi-plan infinity-corrected objectives for improved image flatness and clarity

MP302PL

Binocular Biological Microscope Plan Objectives

Fully corrected plan infinity objectives for premium flat-field imaging performance

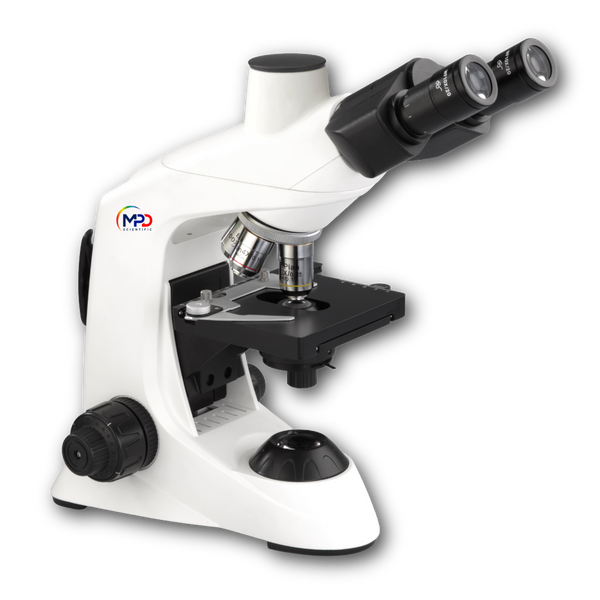

MP303

Trinocular Microscope

Infinity-corrected achromat objectives for routine biological observation

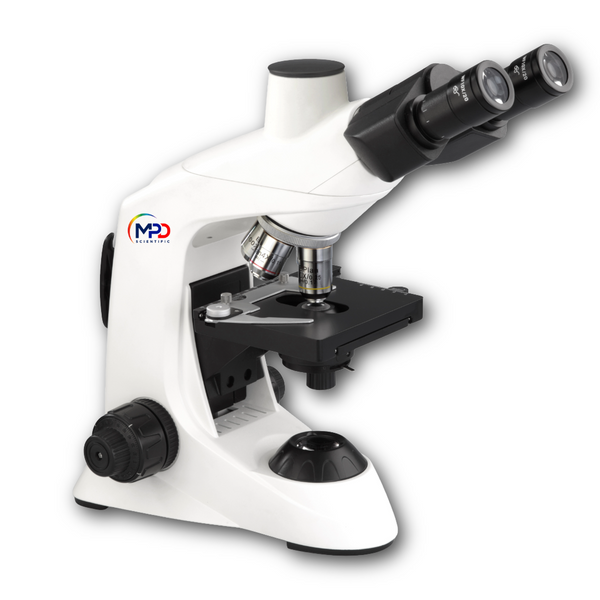

MP303SP

Trinocular Biological Microscope Semi-Plan Objectives

Semi-plan infinity-corrected objectives for improved image flatness and clarity

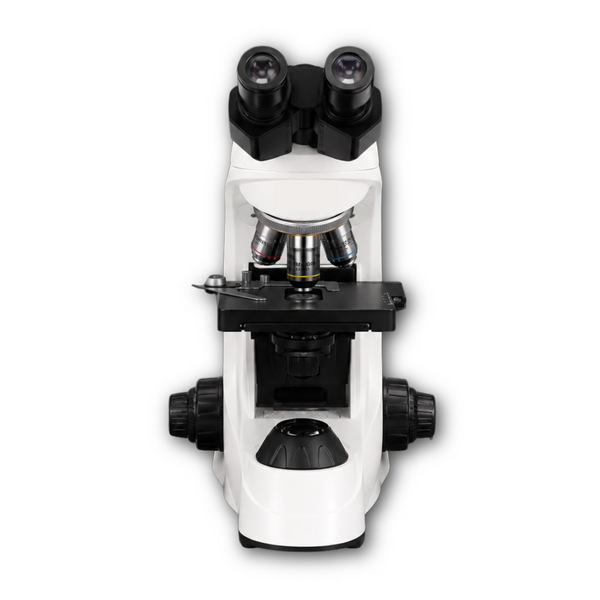

MP303PL

Trinocular Biological Microscope Plan Objectives

Fully corrected plan infinity objectives for premium flat-field imaging performance
