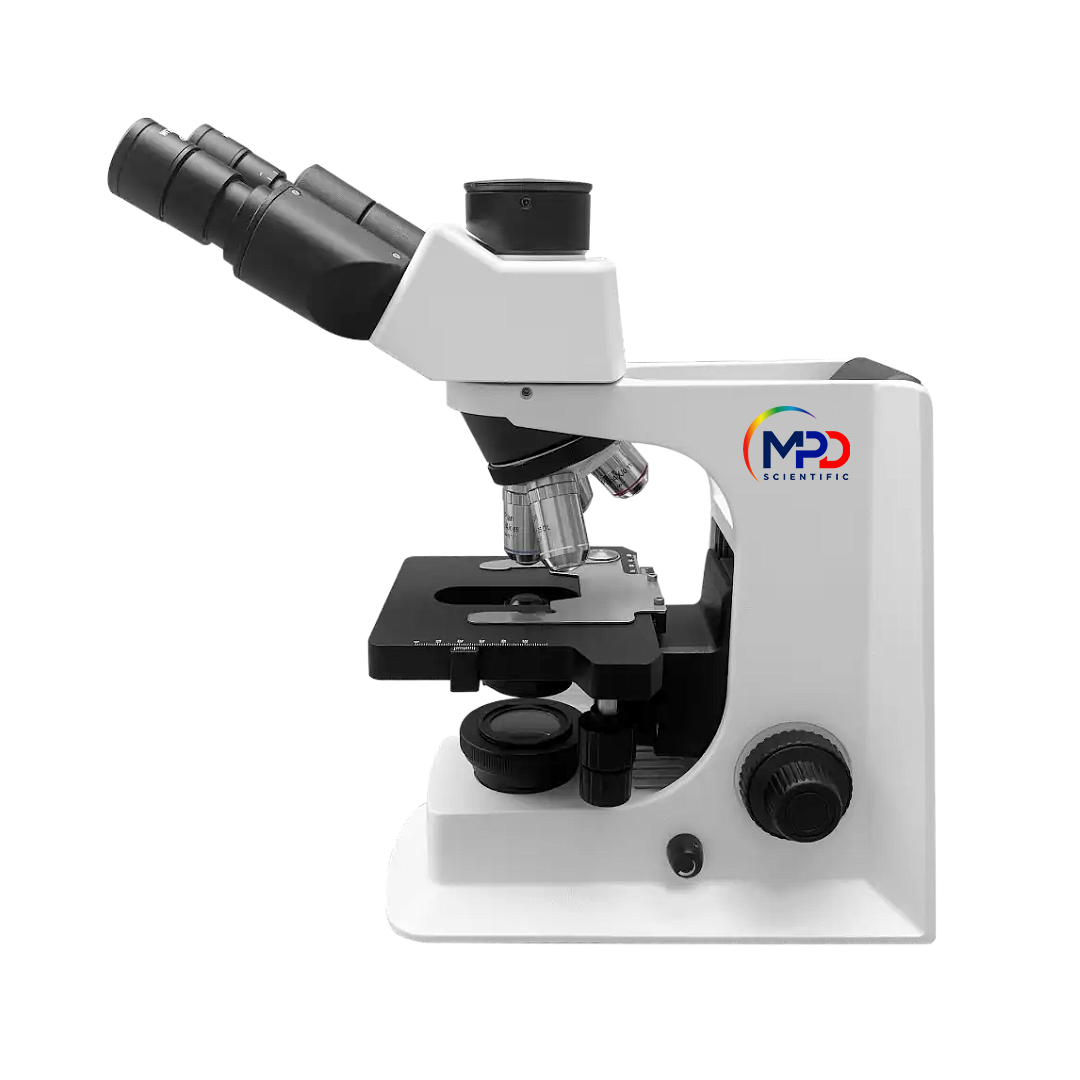

Microscope with a MPD logo on a white background

MP400 Series Microscopes

MP402 / MP402SP / MP402PL / MP403 / MP403SP / MP403PL
ISO 13485:2016 Certified FDA Registered Facility
  • Achromat, Semi-Plan, or fully corrected Plan Objectives
  • Binocular (Seidentopf); Trinocular (Seidentopf)
$1,377.00
Estimated Delivery:Oct 05 - Oct 09
Guarantee safe & secure checkout

Overview

The MP400 Series is a professional-grade compound microscope line engineered for the demands of high-throughput research, clinical, and applied laboratory environments. Built on a heavy-duty mechanical platform, the MP400 Series delivers the precision, durability, and optical versatility required for all-day use where accuracy and reliability are non-negotiable.

Available in binocular and trinocular configurations across three objective tiers — Achromat, Semi-Plan, and fully corrected Plan — the MP400 Series scales to meet the needs of any laboratory setting. A large 145×140mm stage, 5-position reverse nosepiece with positive click-stop engagement, and precision coaxial focusing with 2µm resolution provide a stable, ergonomic platform for routine examination, histopathology, and integrated digital imaging workflows. LED illumination and infinity-corrected optics round out a comprehensive, future-ready biological microscopy solution.

Specifications

Series: MP400
Category: Laboratory Biological Compound Microscope
Head Options: Binocular (Seidentopf); Trinocular (Seidentopf)
Head Inclination: 30°
Head Rotation: 360°
Interpupillary Distance: 48–75mm
Eyepiece: WF10×; FOV 20mm
Objective Options: Achromat; Semi-Plan; Plan (all infinity-corrected)
Objective Set: 4×, 10×, 40×, 100×
Nosepiece: 5-Position Reverse with Positive Click-Stop Engagement
Magnification Range: 40×–1000×
Stage: Integrated Rackless Mechanical; Dual Slide Holder
Stage Size: 145×140mm
Stage Travel: 76×52mm
Focus Range: 26mm
Focus Resolution: 2µm/division
Illumination: LED
Coaxial Focus: Yes
Dimensions (W×D×H): 15.35 × 11.02 × 17.71 in / 390 × 280 × 450 mm
Weight: 40 lbs / 18.14 kg
MP402: Binocular — Achromat Objectives
MP402SP: Binocular — Semi-Plan Objectives
MP402PL: Binocular — Plan Objectives
MP403: Trinocular — Achromat Objectives
MP403SP: Trinocular — Semi-Plan Objectives
MP403PL: Trinocular — Plan Objectives

Applications

MP400 Series Microscopes

Histology & Pathology — Fully corrected Plan objectives on the MP402PL and MP403PL deliver exceptional flat-field sharpness for tissue slide examination, staining analysis, and pathology workflows requiring edge-to-edge image uniformity.
Clinical Laboratory — A reliable, high-throughput platform for routine specimen preparation, urinalysis, hematology, and cytology in clinical and diagnostic settings.
Microbiology — Oil immersion at 100× with precision stage control supports detailed bacterial morphology, gram staining, and culture examination.
Research & University Laboratories — Tiered optical options and a robust mechanical platform support a broad range of biological and life science research applications at the academic and professional level.

Documents

MP400 Series Product Manual
PDF
MP403
PDF

Recommended Accessories

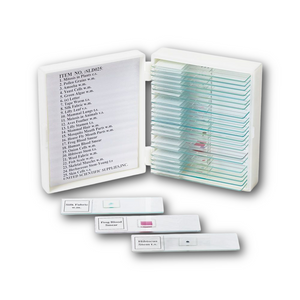

Basic Prepared Slide Set, 25 Slides

Basic Prepared Slide Set, 25 Slides

View →

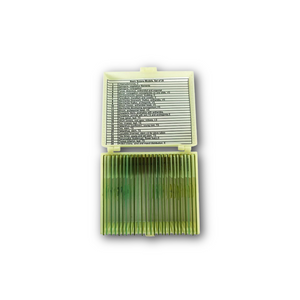

Bacteria Slide Set Of 12

Bacteria Slide Set Of 12

View →

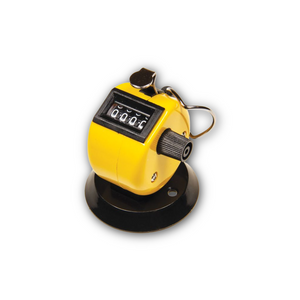

Hand Tally Counter

Hand Tally Counter

View →

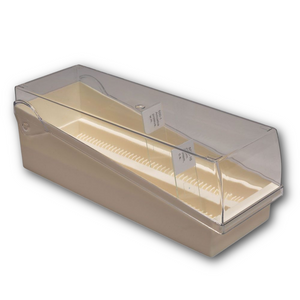

Slide Storage Rack, For 100 Slides

Slide Storage Rack, For 100 Slides

View →

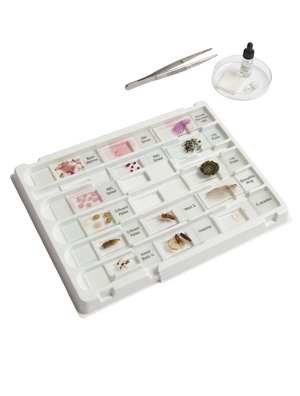

Microscope Slide Tray, Polystyrene, Pack Of 6

Microscope Slide Tray, Polystyrene, Pack Of 6

View →

Key Features

Infinity-Corrected Optics Across Three Tiers

Select from Achromat, Semi-Plan, or fully corrected Plan objectives to match your required level of field flatness and image uniformity, from routine lab work to high-resolution research imaging.

5-Position Reverse Nosepiece with Click-Stop Engagement

Positive parfocal click-stop design ensures precise, repeatable objective alignment and reduces hand fatigue during extended multi-magnification workflows.

Large 145×140mm Rackless Mechanical Stage

Low-profile integrated stage with dual slide holder maximizes working space and simplifies slide handling, with 76×52mm travel range for systematic specimen navigation.

High-Resolution Coaxial Focus

26mm coarse travel range with 2µm/division fine adjustment delivers smooth, accurate focusing across all magnification levels for demanding research and clinical applications.

Ergonomic Seidentopf Head

30° inclination with 360° rotation and 48–75mm IPD adjustment accommodates diverse users for comfortable, fatigue-free extended sessions.

Available Configurations

Select a configuration below to update your order.

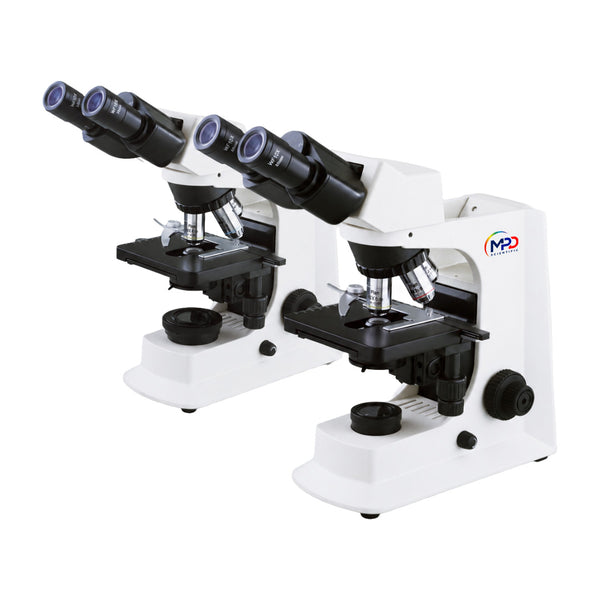

Binocular Infinity-corrected E-Plan Objectives

MP402

Binocular Infinity-corrected E-Plan Objectives

  • 4×, 10×, 40×, 100× Achromat Objectives

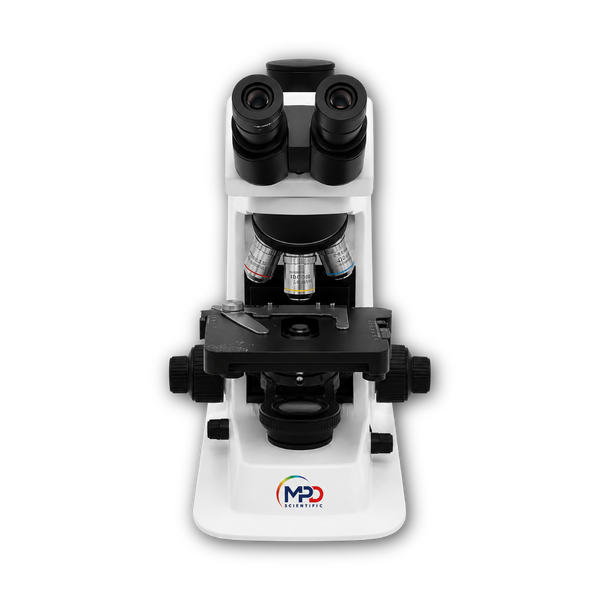

Binocular Semi-plan Infinity-corrected Objectives

MP402SP

Binocular Semi-plan Infinity-corrected Objectives

  • Precision mechanical platform with ergonomic Seidentopf head design

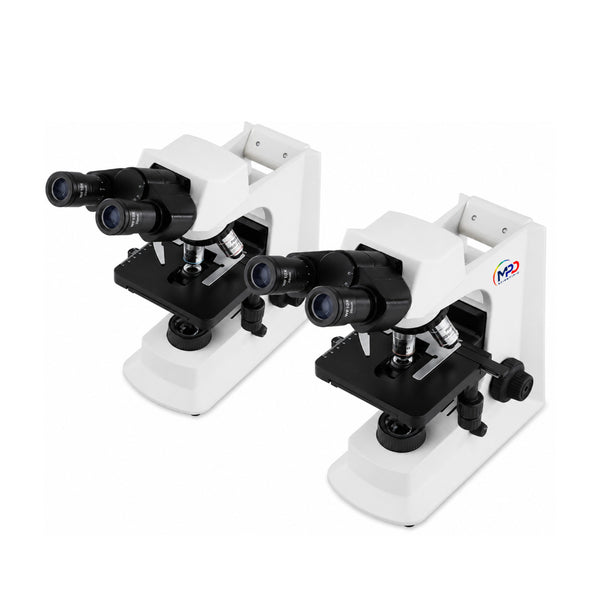

Binocular Fully Corrected Plan Infinity Objectives

MP402PL

Binocular Fully Corrected Plan Infinity Objectives

  • High-performance platform designed for research, clinical, and imaging applications

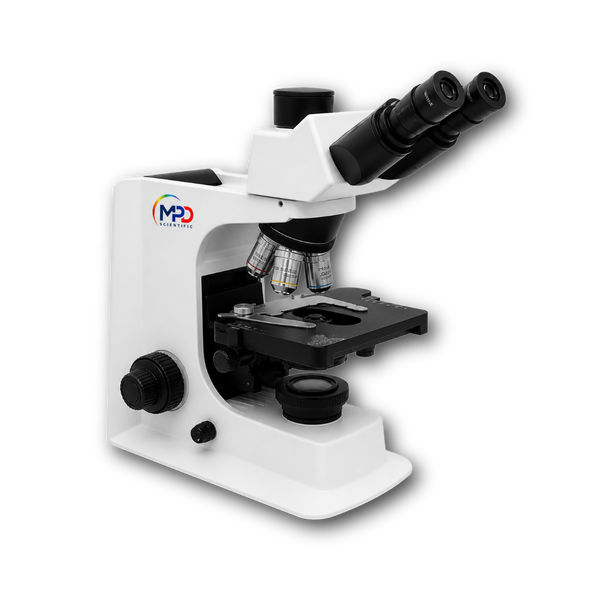

Trinocular Laboratory Microscope E-Plan Objectives

MP403

Trinocular Laboratory Microscope E-Plan Objectives

  • Infinity Corrected Achromat Objectives

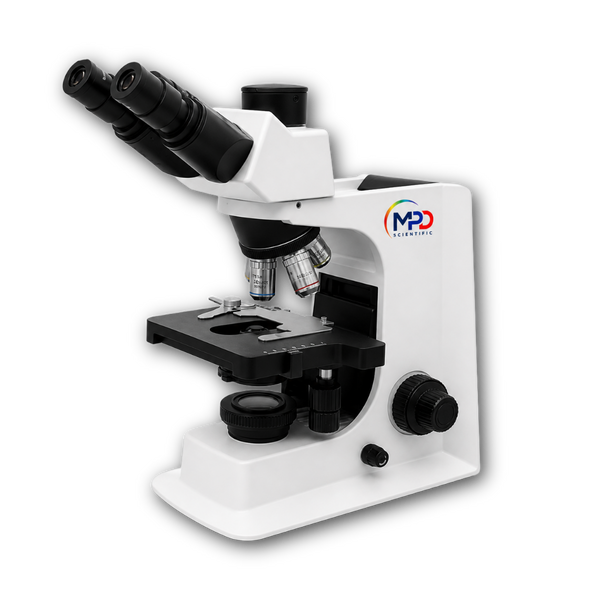

Trinocular Laboratory Microscope Semi-Plan Objectives

MP403SP

Trinocular Laboratory Microscope Semi-Plan Objectives

  • Infinity Corrected Semi-Plan Objectives
Trinocular Laboratory Microscope Plan Objectives

MP403PL

Trinocular Laboratory Microscope Plan Objectives

  • Infinity Corrected Plan Objectives
