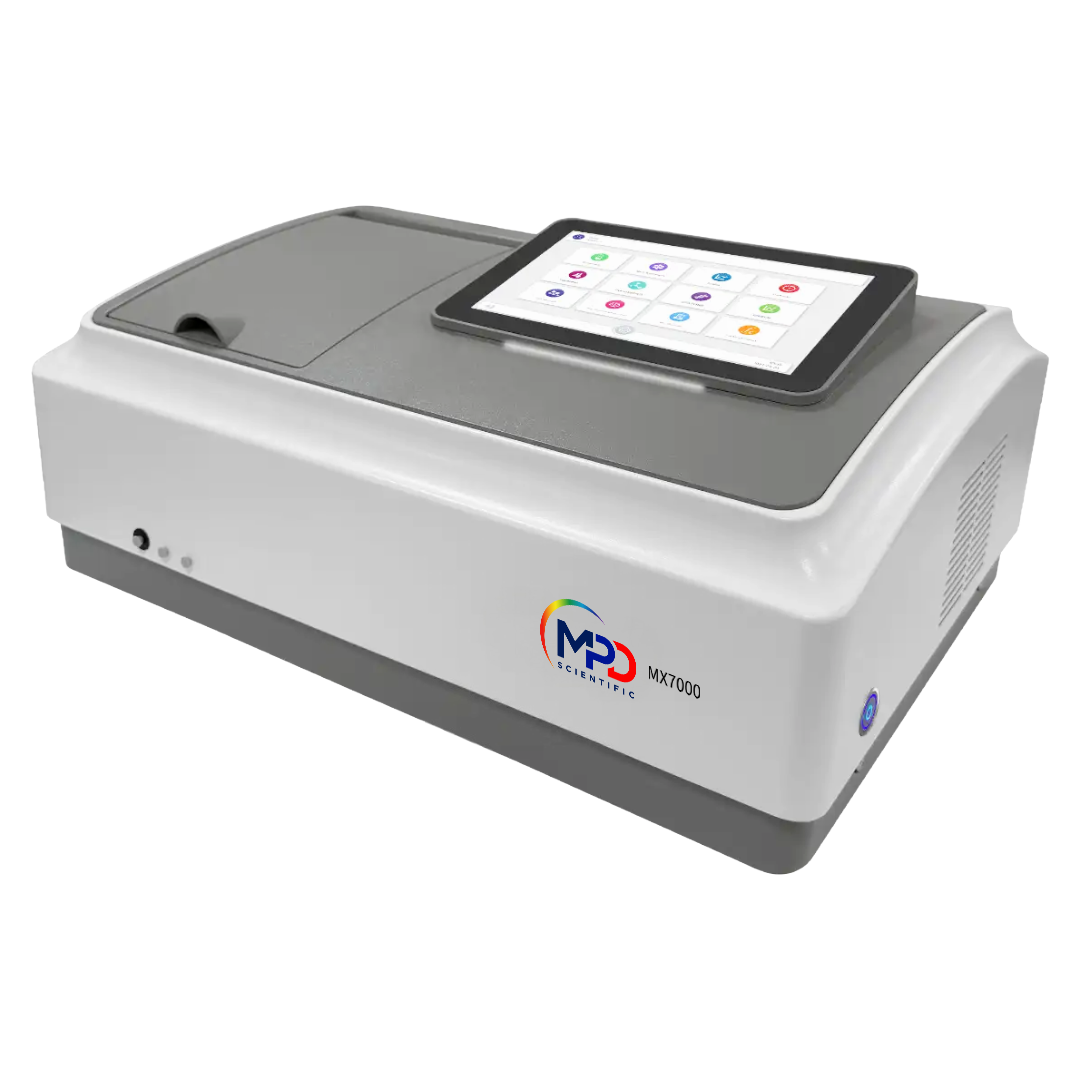

MX7000 Double Beam UV/Visible Spectrophotometer

MX7000 Double Beam UV/Visible Spectrophotometer

Advanced Double-Beam Analysis with Connected Convenience
ISO 13485:2016 Certified FDA Registered Facility
$12,681.00
Estimated Delivery:Oct 04 - Oct 08
Guarantee safe & secure checkout

Overview

Advanced Double Beam Optical System
Engineered with a true double beam configuration and flashing Xenon lamp light source, the MX7000 delivers exceptional stability and accuracy across its full 190–1100 nm wavelength range — eliminating drift caused by lamp fluctuations.

Outstanding Photometric Performance
Dual silicon photodiode detection achieves a noise level as low as ≤0.00006 A (RMS) and baseline stability of ≤0.0005 A/h, ensuring highly reliable and reproducible measurements even in demanding analytical environments.

Exceptional Wavelength Precision
With a spectral bandwidth of 1.8 nm, wavelength accuracy of ±0.3 nm, and repeatability of ≤0.1 nm, the MX7000 ensures consistent, trustworthy results across every scan.

High-Speed Scanning
A maximum scan speed of 10,000 nm/min with a selectable range of 20–3,200 nm/min allows users to tailor throughput to their specific application — from rapid screening to high-resolution analysis.

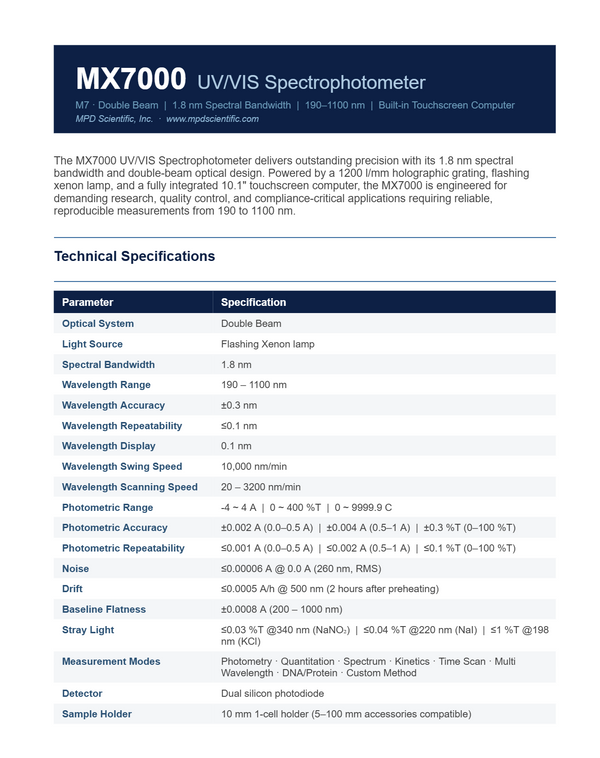

Specifications

Optical System: Double beam
Light Source: Flashing Xenon lamp
Detector: Dual silicon photodiode
Spectral Bandwidth: 1.8 nm
Wavelength Range: 190–1100 nm
Wavelength Accuracy: ±0.3 nm
Wavelength Repeatability: ≤0.1 nm
Wavelength Resolution: 0.1 nm
Maximum Scan Speed: 10000 nm/min
Scan Speed Range: 20–3200 nm/min
Photometric Range: -4 ~ 4 A, 0 ~ 400 %T, 0 ~ 9999.9 C
Photometric Accuracy: ±0.002 A (0–0.5 A); ±0.004 A (0.5–1 A); ±0.3 %T (0–100 %T)
Photometric Repeatability: ≤0.001 A (0–0.5 A); ≤0.002 A (0.5–1 A); ≤0.1 %T (0–100 %T)
Noise Level: ≤0.00006 A @ 0.0 A (260 nm, RMS)
Baseline Stability: ≤0.0005 A/h @ 500 nm (2 h after preheating)
Baseline Flatness: ±0.0008 A (200–1000 nm)
Stray Light: ≤0.03 %T @ 340 nm (NaNO₂); ≤0.04 %T @ 220 nm (NaI); ≤1 %T @ 198 nm (KCl)
Measurement Modes: Photometry, Quantitation, Spectrum, Kinetics, Time Scan, Multi-Wavelength, DNA/Protein, Custom Method
Standard Cell Holder: 10 mm 1-cell holder
Display: 10.1-inch IPS color capacitive touchscreen (1280×800)
Storage: 128 GB built-in; unlimited via USB, SD card, or network storage
Connectivity: USB-A ×3 (extensible); USB-B ×1 (PC); RJ-45 ×1; VGA ×1; HDMI ×1; Wi-Fi optional
Power Supply: 100–240 V AC, 50/60 Hz, 100 VA
Dimensions (W×D×H): 580 × 420 × 235 mm
Weight: 17 kg

Applications

MX7000 Double Beam UV/Visible Spectrophotometer

The MX7000 UV-Vis Spectrophotometer is a versatile analytical instrument suited to a wide range of laboratory disciplines. In life sciences and biotechnology, it excels at DNA, RNA, and protein quantification, supporting researchers in genomics, proteomics, and molecular biology workflows. Its high photometric accuracy and dedicated kinetics mode make it equally well-suited for enzyme activity studies and reaction rate monitoring in biochemical research. In pharmaceutical and quality control environments, the MX7000 delivers the precision and repeatability required for raw material testing, dissolution studies, and compliance with pharmacopeial standards. Environmental and water quality laboratories benefit from its broad wavelength range and multi-wavelength measurement capabilities for the detection and quantification of pollutants, heavy metals, and chemical contaminants. The instrument is also widely applicable in food and beverage testing, chemical manufacturing, and educational settings, where its intuitive touchscreen interface and customizable methods lower the barrier to routine and complex spectrophotometric analysis alike.
