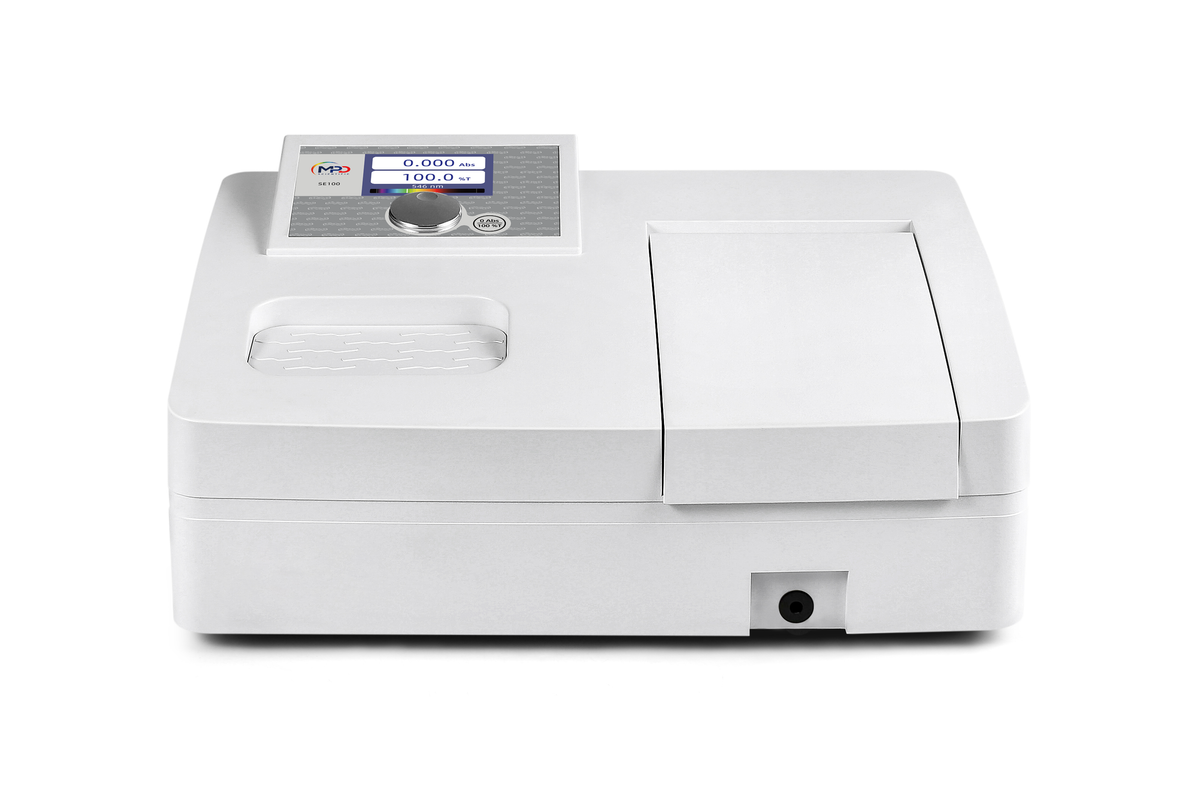

SE100 Spectrophotometer

SE100 Spectrophotometer

Accurate, Compact, and Ready for the Bench
ISO 13485:2016 Certified FDA Registered Facility
  • Educational
  • Wavelength Range: 325–1050 nm
$1,488.00
Estimated Delivery:Oct 05 - Oct 09
Guarantee safe & secure checkout

Overview

Single-beam Vis spectrophotometer, 325–1050 nm, 1.5 nm resolution, 4 nm bandwidth, 3.5-inch 480×320 TFT, tungsten lamp.

The SE100 is an entry-level single-beam visible spectrophotometer offering solid analytical performance for routine colorimetric and turbidity measurements in educational, clinical, and quality-control laboratories. Covering 325–1050 nm with 1.5 nm wavelength resolution and a 4 nm spectral bandwidth, it handles the most common visible-range assays reliably and economically. A stable tungsten lamp light source and a clear 3.5-inch 480×320 TFT display combine ease of use with dependable, day-to-day laboratory performance.

Specifications

Optical system: Single beam
Light source: Tungsten
Detector: Silicon photodiode
Spectral bandwidth: 4 nm
Wavelength: 325–1050 nm
Wavelength accuracy: ±1.5 nm
Wavelength repeatability: ≤0.5 nm
Photometric range: -0.3–3 A, 0–200%T
Photometric accuracy: ±0.5 %T
Photometric repeatability: ±0.2 %T (0–100%)
Noise: ≤0.001 A
Drift: ≤0.002 A/h @ 500 nm
Stray light: ≤0.2 %T (360 nm)

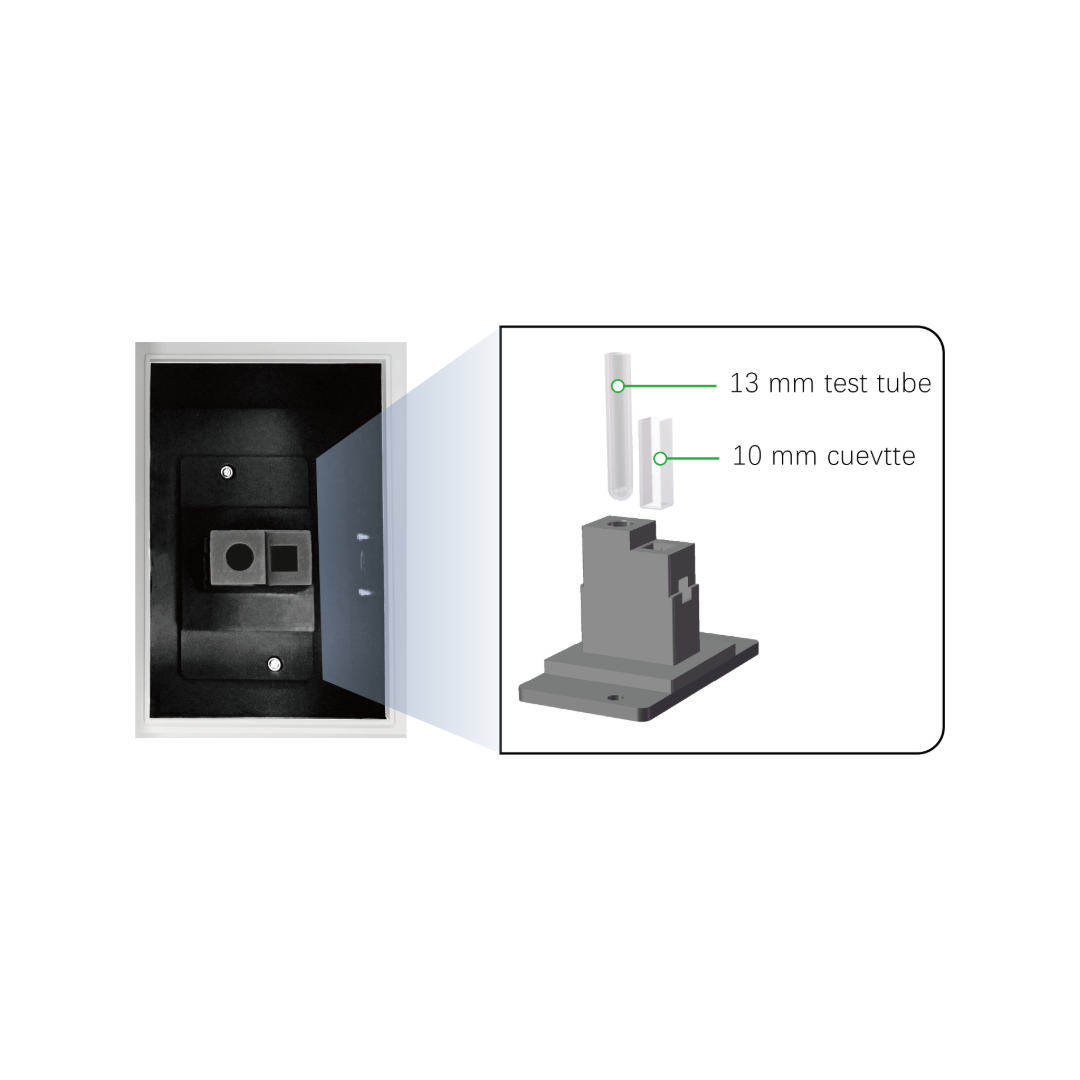

Sample holder: 10 mm cuvette/1
Display: 3.5 inch TFT
Storage: 236 KB built-in
Interface: USB-B×1
Power supply: 100–240 V
Dimensions: 450 (W)
Weight: 8 kg

Applications

SE100 Spectrophotometer

The SE100 is ideal for educational and training laboratories, general laboratory analysis, industrial quality control and process monitoring, color and concentration measurements, environmental and water testing, and food and beverage analysis.

Documents

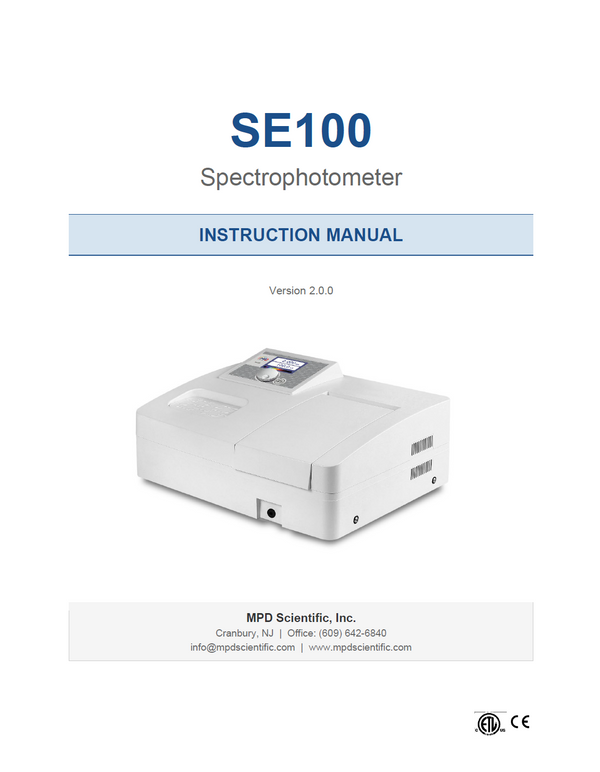

SE100 User Manual
PDF

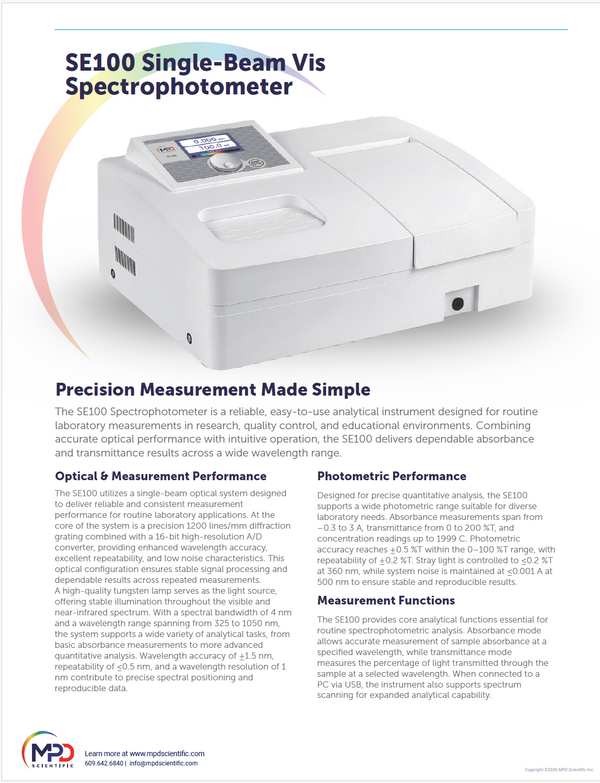

SE100
PDF

Key Features

Single-Beam Visible Spectrophotometer

Straightforward single-beam design delivers reliable, consistent performance for routine visible-range measurements, offering an economical solution for high-throughput educational and quality-control environments.

Wavelength Range: 325–1050 nm

Covers the full visible spectrum and extends into the near-infrared, supporting a wide variety of common colorimetric assays, turbidity measurements, and routine photometric applications.

Spectral Resolution: 1.5 nm

Dependable 1.5 nm resolution provides accurate wavelength discrimination for standard laboratory assays, ensuring consistent and reproducible results across routine workflows.

Tungsten Light Source

Stable tungsten lamp delivers consistent visible-range illumination, providing reliable photometric performance for everyday laboratory use with minimal maintenance requirements.

3.5-Inch Color TFT Touchscreen

Compact 480×320 display offers clear, easy-to-read measurement data and intuitive navigation, simplifying operation for users at all experience levels.
