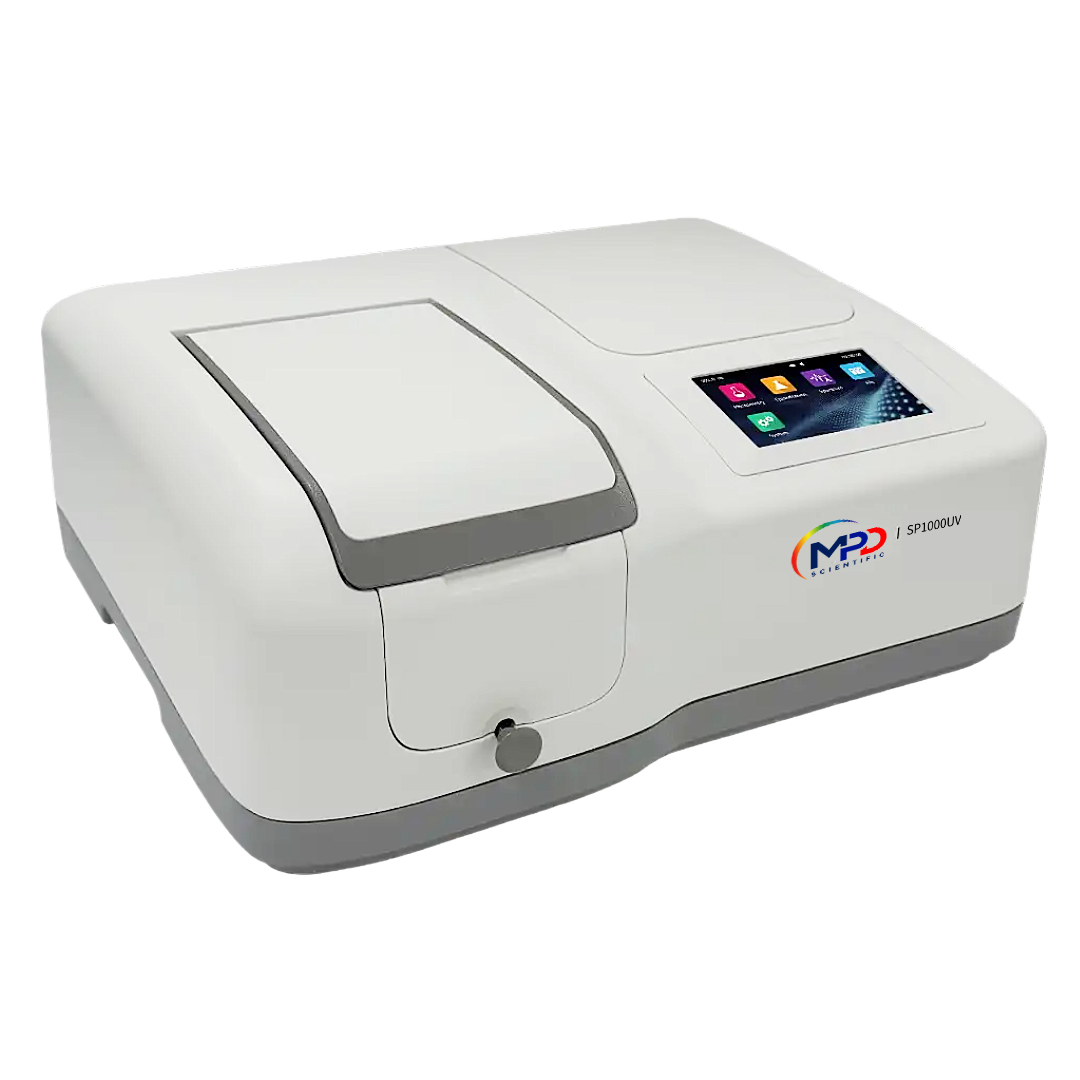

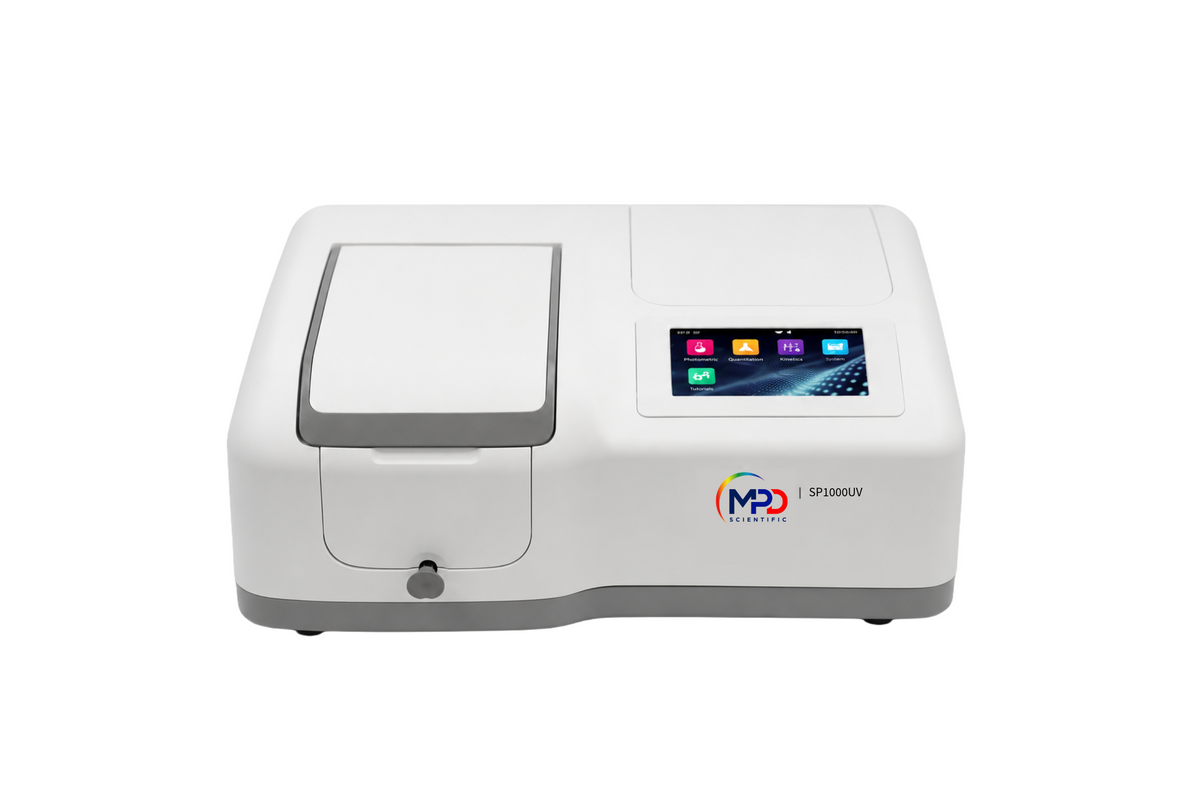

SP1000UV Spectrophotometer

SP1000UV Spectrophotometer

Precision UV-Vis Analysis — From Research Bench to Quality Lab
ISO 13485:2016 Certified FDA Registered Facility
  • Intuitive interface
  • 195–1050 nm
  • Dual tungsten/deuterium lamp
$1,727.00
Estimated Delivery:Oct 04 - Oct 08
Guarantee safe & secure checkout

Overview

The SP1000UV is a single-beam UV-Vis spectrophotometer covering 195–1050 nm through a tungsten/deuterium dual-lamp system. With a 4 nm spectral bandwidth and patented wavelength drive delivering ±0.8 nm accuracy, it provides reliable, repeatable measurements across the full UV and visible spectrum. The 5-inch TFT color touchscreen, 10 mm 4-cell sample changer, and comprehensive photometry and quantitation software make it a practical, capable instrument for routine laboratory analysis. USB and RS232 connectivity, 6-language support, and compatibility with EasyUV PC software ensure it integrates easily into a wide range of laboratory environments.

Specifications

Optical System: Single beam
Light Source: Tungsten, Deuterium
Detector: Silicon photodiode
Spectral Bandwidth: 4 nm
Wavelength Range: 195–1050 nm
Wavelength Accuracy: ±0.8 nm; 0.3 nm @ 656.1 nm
Wavelength Repeatability: ≤0.3 nm
Wavelength Resolution: 0.1 nm
Wavelength Scan Speed: 10,000 nm/min
Measurement Range: -0.3–3 A, 0–200 %T, 0–9999.9 C
Photometric Accuracy: ±0.003 A (0–0.5 A); ±0.006 A (0.5–1 A); ±0.5 %T (0–100 %T)
Photometric Repeatability: ≤0.002 A (0–0.5 A); ≤0.003 A (0.5–1 A); ≤0.2 %T (0–100 %T)
Noise: ≤0.0001 A @ 0.0 A (500 nm, RMS)
Stability: ≤0.002 A/h @ 500 nm (2 h after preheating)
Stray Light: ≤0.2 %T @ 220 nm (NaNO₂); ≤0.05 %T @ 220 nm (NaI)
Measurement Modes: Photometry, Quantitation
Sample Compartment: 10 mm 4-cell manual changer
Display: 5-inch TFT colour touchscreen
Memory: 236 KB built-in; unlimited via USB storage
Connectivity: RS232 ×1 (printer), USB-A ×1 (storage), USB-B ×1 (PC)
Power Supply: 100–240 V AC, 50/60 Hz, 120 VA
Dimensions: 456 (W) × 360 (D) × 185 (H) mm
Weight: 10.7 kg

Applications

SP1000UV Spectrophotometer

The SP1000UV is designed for laboratories requiring reliable UV and visible range analysis. Its dual tungsten/deuterium lamp system and 195–1050 nm range make it well suited for pharmaceutical development and quality control, biochemical and protein analysis, nucleic acid quantification, environmental monitoring, food safety testing, and academic research — wherever precise absorbance, transmittance, or concentration measurements are needed across the full UV-Vis spectrum.

Documents

SP1000UV
PDF

Key Features

195–1050 nm UV-Vis Range

Dual tungsten/deuterium lamp system extends coverage into the UV, enabling a broad range of UV and visible applications from a single instrument.

±0.8 nm Wavelength Accuracy

Patented wavelength drive delivers ±0.8 nm accuracy and ≤0.3 nm repeatability, with 0.3 nm precision verified at the 656.1 nm hydrogen line.

Full Photometry & Quantitation Suite

Supports A/%T/E conversion, single and dual wavelength modes, and three standard curve fitting methods with 19 built-in and up to 8 user-defined concentration units.

5-Inch TFT Colour Touchscreen

Intuitive interface with 6-language support, system calibration tools, and full results management including save, rename, delete, and print.

Versatile Connectivity

RS232 printer port, USB-A for storage expansion, USB-B for PC connectivity with EasyUV software support, and firmware upgrades via USB.
