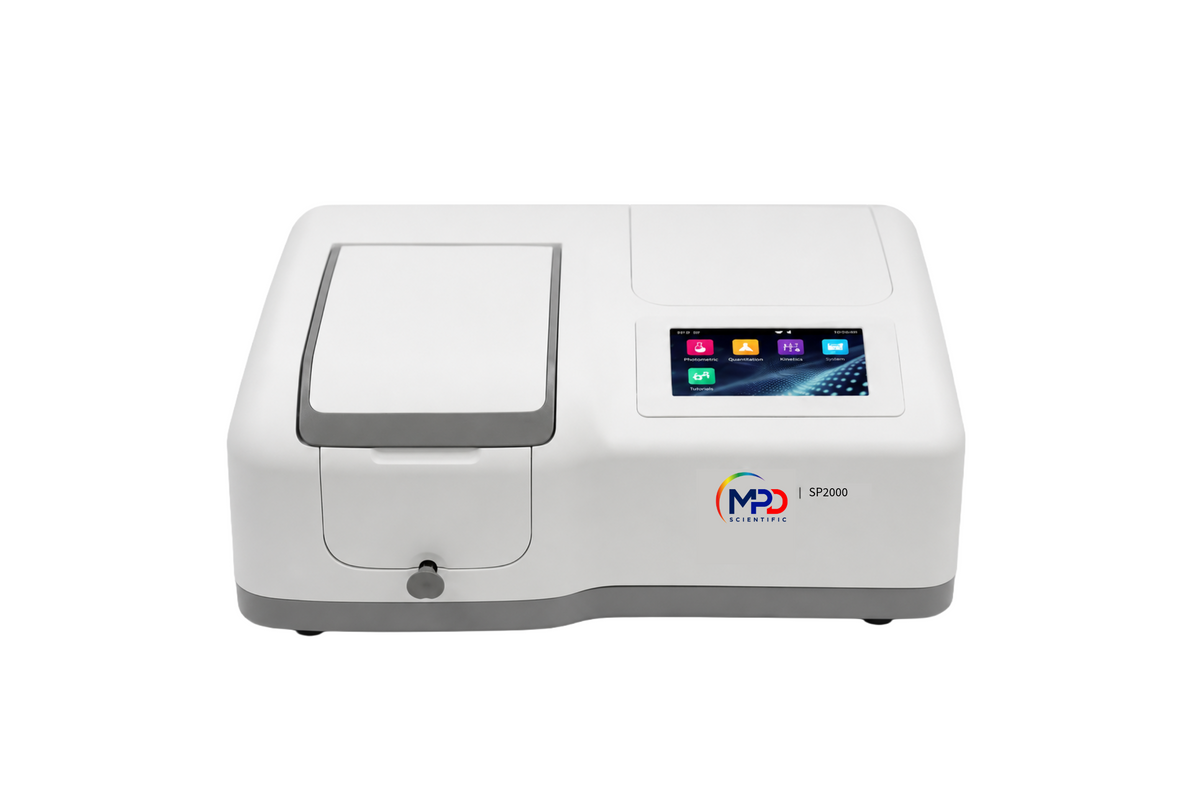

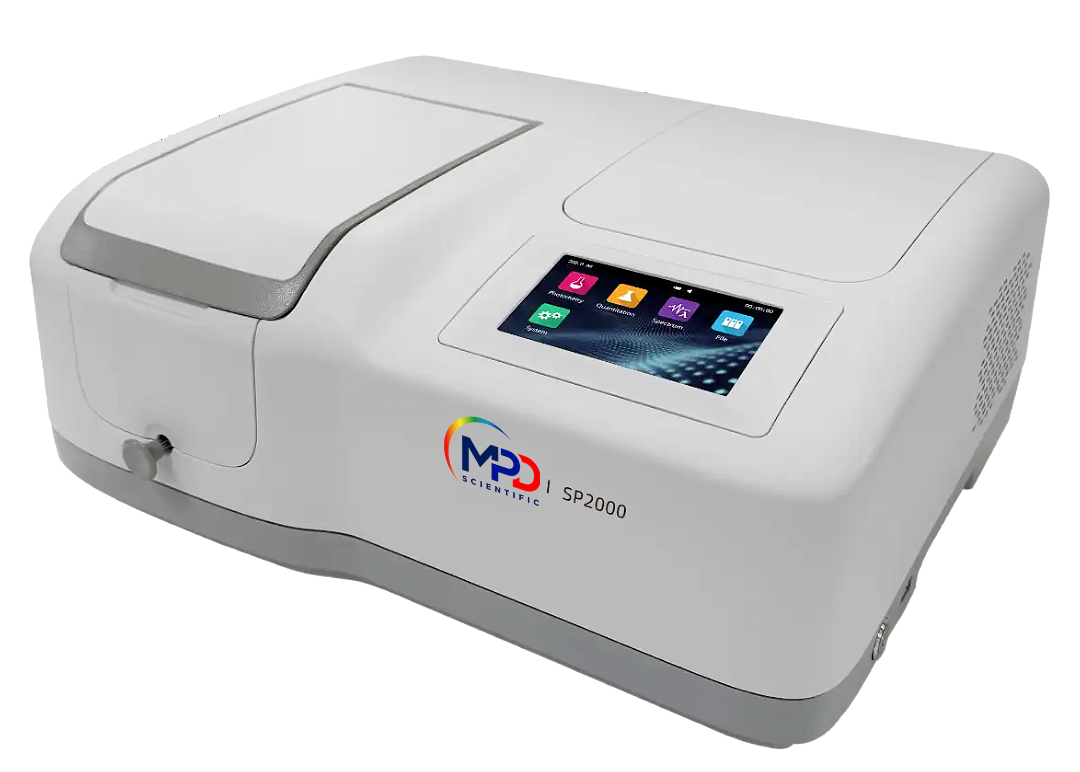

SP2000 Visible Spectrophotometer

Narrowed 2 nm spectral bandwidth for enhanced wavelength resolution in the 320–1050 nm range

$1,546.00

Specifications Description Applications Contact

The SP2000 builds on the SP1000 platform with a narrowed 2 nm spectral bandwidth for enhanced wavelength resolution—ideal for applications requiring finer spectral discrimination. Covering 320–1050 nm with the same robust aluminum die-cast body, 5-inch touchscreen, and full photometry/quantitation suite.

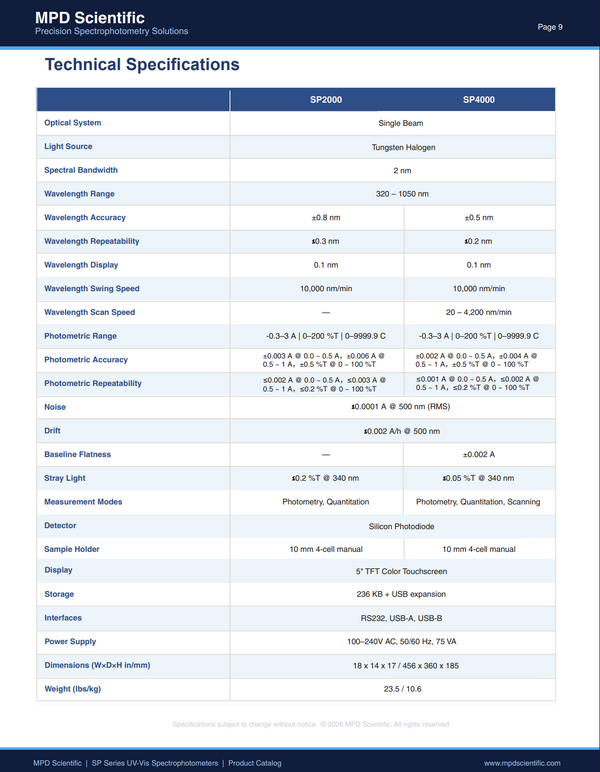

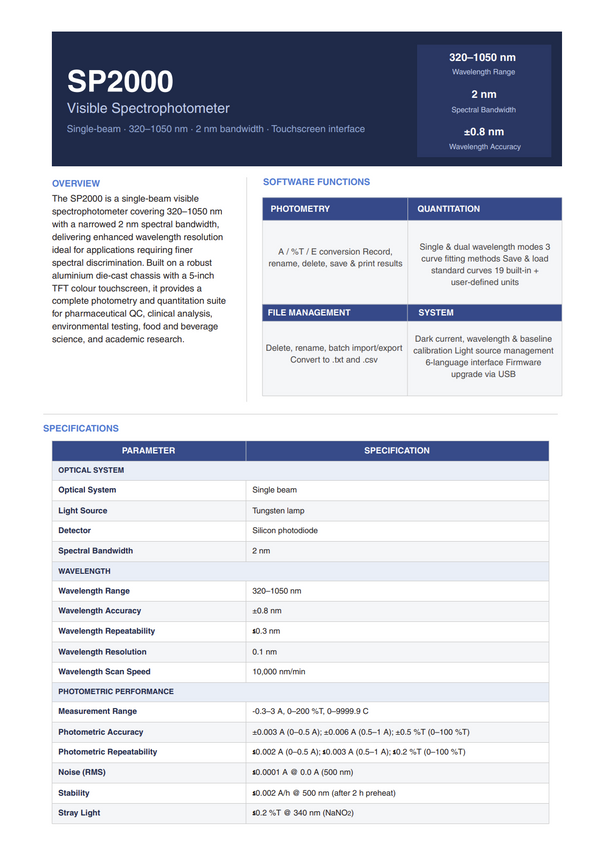

Optical System	Single beam
Light Source	Tungsten
Detector	Silicon photodiode
Spectral Bandwidth	2 nm
Wavelength Range	320–1050 nm
Wavelength Accuracy	±0.8 nm
Wavelength Repeatability	≤0.3 nm
Wavelength Resolution	0.1 nm
Wavelength Scan Speed	10000 nm/min
Measurement Range	-0.3–3 A, 0–200 %T, 0–9999.9 C
Photometric Accuracy	±0.003 A (0–0.5 A); ±0.006 A (0.5–1 A); ±0.5 %T (0–100 %T)
Photometric Repeatability	≤0.002 A (0–0.5 A); ≤0.003 A (0.5–1 A); ≤0.2 %T (0–100 %T)
Noise	≤0.0001 A @ 0.0 A (500 nm, RMS)
Stability	≤0.002 A/h @ 500 nm (2 h after preheating)
Stray Light	≤0.2 %T @ 340 nm (NaNO₂)
Measurement Modes	Photometry, Quantitation
Sample Compartment	10 mm 4-cell manual charger
Display	5-inch TFT color touchscreen
Memory	236 KB built-in; unlimited via USB storage
Connectivity	RS232 ×1 (printer), USB-A ×1 (USB storage), USB-B ×1 (PC)
Power Supply	100–240 V AC, 50/60 Hz, 75 VA
Dimensions	456 (W) × 360 (D) × 185 (H) mm
Weight	10.5 kg

Key Features

2 nm Spectral Bandwidth — Enhanced wavelength resolution over broader-bandwidth instruments, enabling finer spectral discrimination across the 320–1050 nm range.

±0.8 nm Wavelength Accuracy — Patented wavelength drive delivers ±0.8 nm accuracy and ≤0.3 nm repeatability for highly reliable measurements.

Full Photometry & Quantitation Suite — Supports A/%T/E conversion, single and dual wavelength modes, and standard curve fitting with three methods (linear through zero, linear, and quadratic).

5-Inch TFT Color Touchscreen — Intuitive interface with 6-language support, system calibration tools, and full results management including save, rename, delete, and print.

Versatile Connectivity — RS232 printer port, USB-A for storage expansion, USB-B for PC connectivity with EasyUV software support, and firmware upgrades via USB.

Applications

The SP2000 is designed for laboratory environments where precise spectral discrimination is essential. Its narrowed 2 nm bandwidth makes it well suited for clinical analysis, pharmaceutical quality control, environmental testing, food and beverage analysis, and academic research — anywhere accurate absorbance, transmittance, or concentration measurements are required across the visible and near-infrared spectrum.
