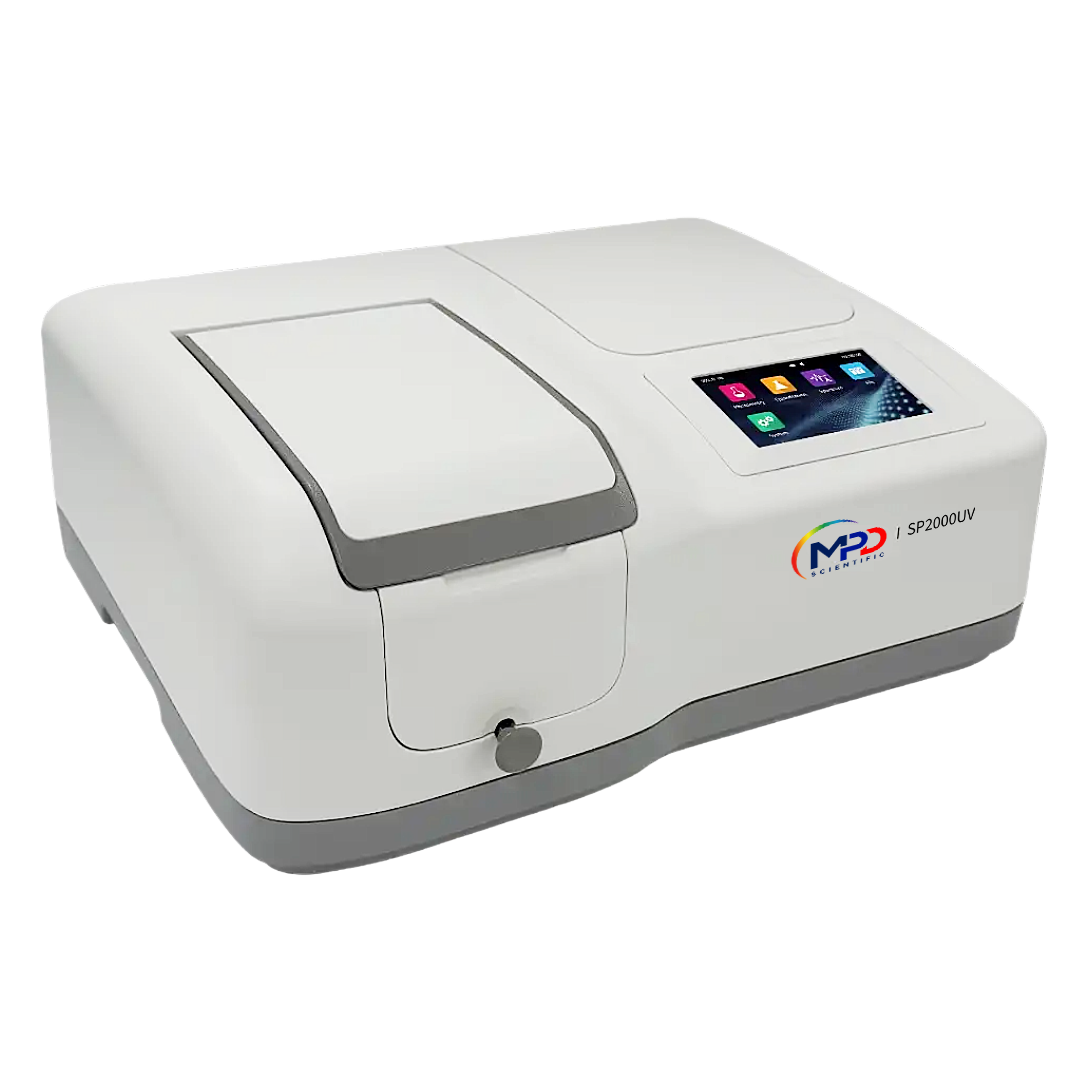

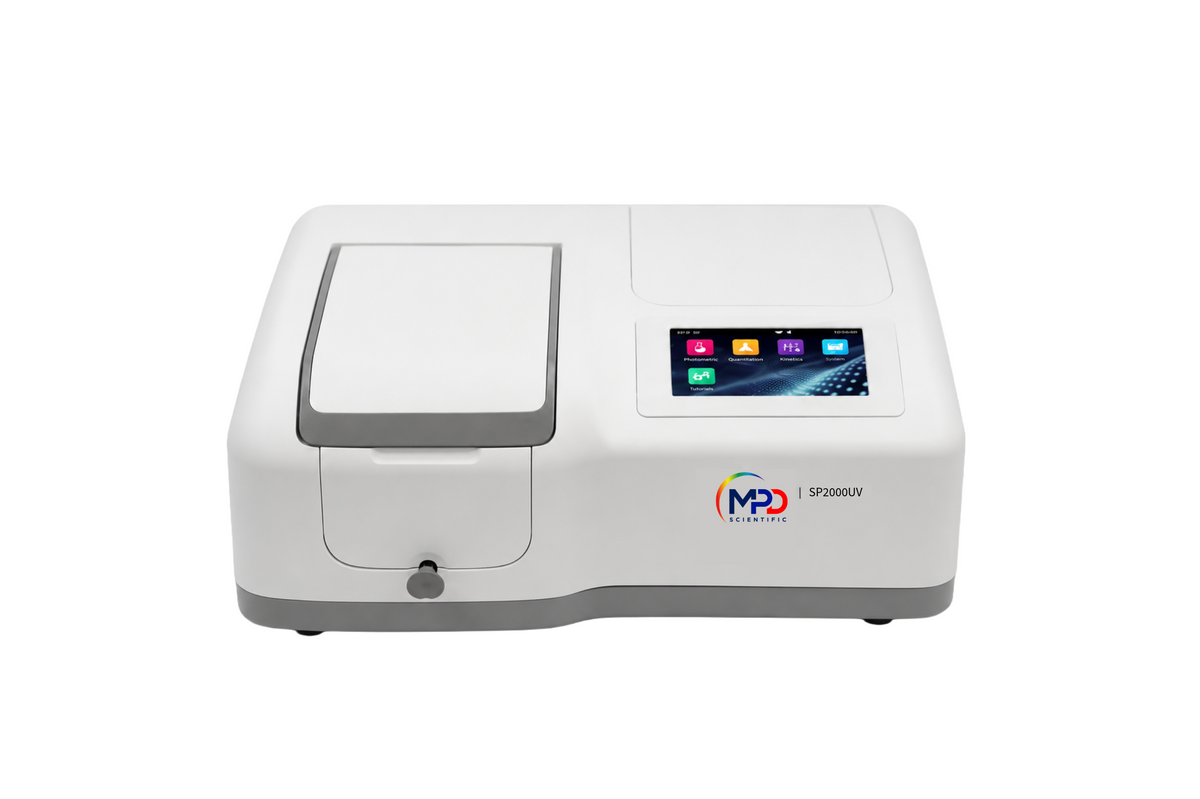

SP2000UV Spectrophotometer

Unlock Precision in Every Measurement

$3,342.00

Specifications Description Applications Contact

The SP2000UV is a high-performance single-beam UV-Vis spectrophotometer designed for precise spectral analysis across a wide wavelength range of 195–1050 nm. Powered by a tungsten/deuterium light source, it delivers exceptional accuracy with a wavelength resolution of 0.1 nm and repeatability of ≤0.3 nm, ensuring reliable results for applications in chemistry, pharmaceuticals, environmental testing, and materials science. The instrument features a 2 nm spectral bandwidth, low stray light (≤0.2 %T @ 340 nm), and minimal photometric noise (≤0.0001 A RMS), making it ideal for sensitive measurements. With a 5" TFT touchscreen, USB and RS232 connectivity, and a compact 10.7 kg design, the SP2000UV combines accuracy, versatility, and ease of use in a single, efficient package.

Optical System	Single Beam
Light Source	Tungsten / Deuterium
Spectral Bandwidth	2 nm
Wavelength Range	195–1050 nm
Wavelength Accuracy	±0.8 nm (±0.3 nm @ 656.1 nm)
Wavelength Repeatability	≤0.3 nm (≤0.2 nm)
Wavelength Resolution	0.1 nm
Wavelength Scanning Speed (max)	10,000 nm/min
Wavelength Scanning Speed (variable)	20–4,200 nm/min
Photometric Range	-0.3–3 A, 0–200 %T, 0–9999.9 C
Photometric Accuracy	≤0.002 A (0–0.5 A); ≤0.003 A (0.5–1 A); ≤0.2 %T
Photometric Repeatability	≤0.001 A (0–0.5 A); ≤0.002 A (0.5–1 A)
Photometric Noise	≤0.0001 A @ 0.0 A (500 nm, RMS)
Baseline Drift	≤0.0001 A @ 500 nm (RMS)
Baseline Flatness	±0.002 A
Stray Light	≤0.2 %T @ 340 nm (NaNO₂); ≤0.05 %T @ 220 nm (NaI)
Measurement Modes	Photometry, Quantitation, Scanning
Detector	Silicon Photodiode
Sample Compartment	10 mm 4-cell manual changer
Display	5" TFT color touchscreen
Data Storage	236 KB (built-in), unlimited via USB
Interfaces	RS232 ×1 (printer), USB-A ×1, USB-B ×1 (PC)
Power Supply	100–240 V AC, 50/60 Hz, 120 VA
Dimensions (W×D×H)	456 × 360 × 185 mm
Weight	10.7 kg

Key Features

Single-Beam UV-Vis Spectrophotometer
A high-precision single-beam design ensures reliable, consistent
performance for a wide range of UV-Vis applications, offering an
economical yet powerful solution for research, quality control, and
educational environments.

Wavelength Range: 195–1050 nm
Covers the full UV and visible spectrum, enabling analysis of a broad
spectrum of samples, from nucleic acids and proteins to chemical
compounds and environmental pollutants.

Spectral Bandwidth: 2 nm
A 2 nm bandwidth delivers sharp resolution for detailed spectral
analysis, ensuring accurate and reproducible results for both routine
and advanced applications.

Wavelength Accuracy: ±0.8 nm (±0.3 nm @ 656.1 nm)
Industry-leading accuracy guarantees precise wavelength selection, critical for applications requiring exact spectral matching.

Applications

The SP2000UV is a high-performance UV-Vis spectrophotometer designed for laboratories and institutions that require precision, versatility, and reliability. In academic and research settings, it empowers scientists and students to conduct advanced experiments, from nucleic acid and protein analysis to kinetic studies and material characterization, thanks to its broad 195–1050 nm wavelength range and exceptional photometric accuracy. Pharmaceutical and biopharmaceutical labs rely on it for drug formulation testing, API analysis, and dissolution studies, ensuring compliance with strict regulatory standards. Clinical and diagnostic facilities use its high sensitivity and low stray light to perform complex assays, including protein, enzyme, and nucleic acid quantification, while environmental and water testing labs depend on it for detecting contaminants, nutrients, and heavy metals with precision. Quality control teams in food, beverage, cosmetics, and chemical manufacturing leverage its reliable performance for concentration testing, purity verification, and batch consistency checks. Wherever accurate, high-performance UV-Vis analysis is essential, the SP2000UV delivers uncompromising results in a compact, user-friendly package.
