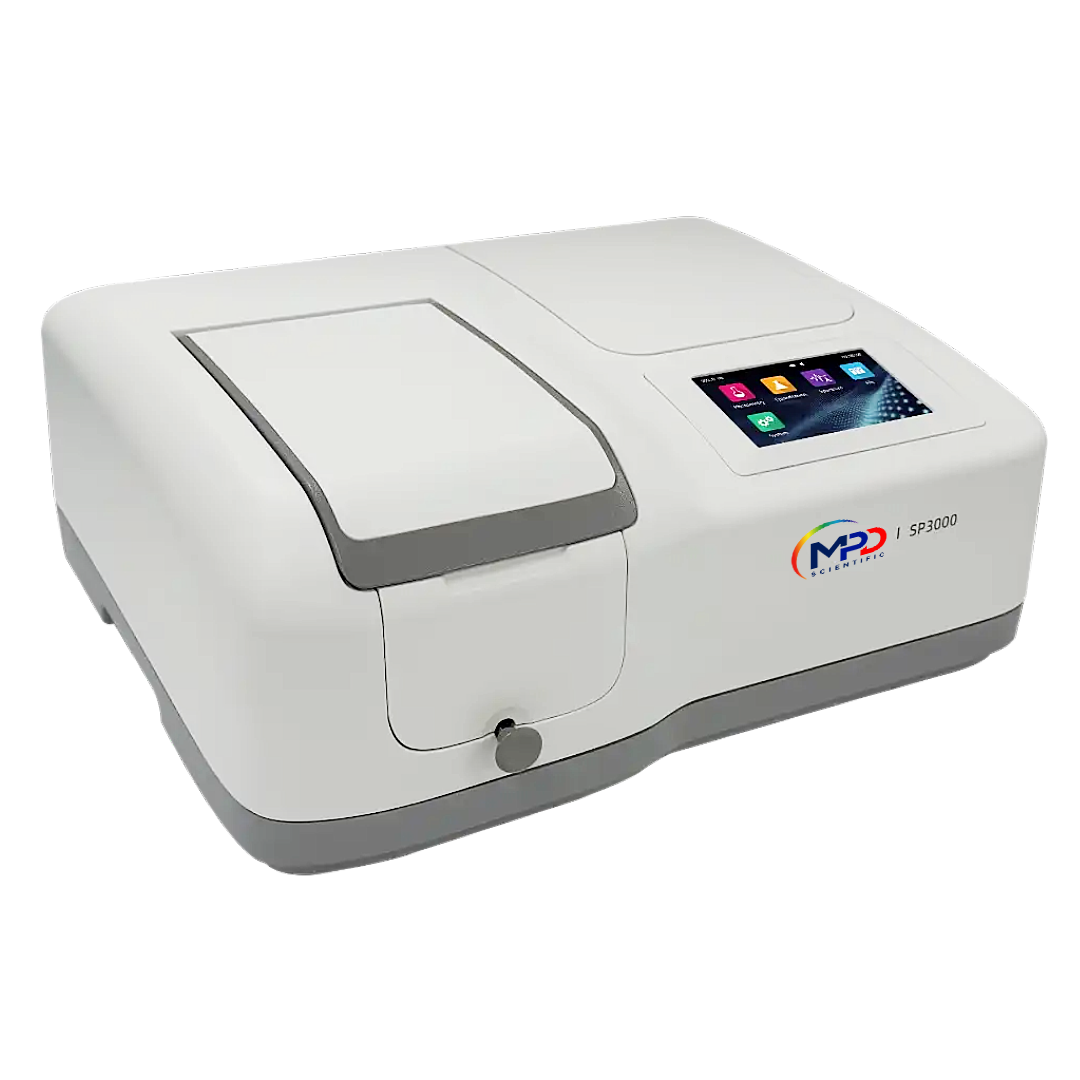

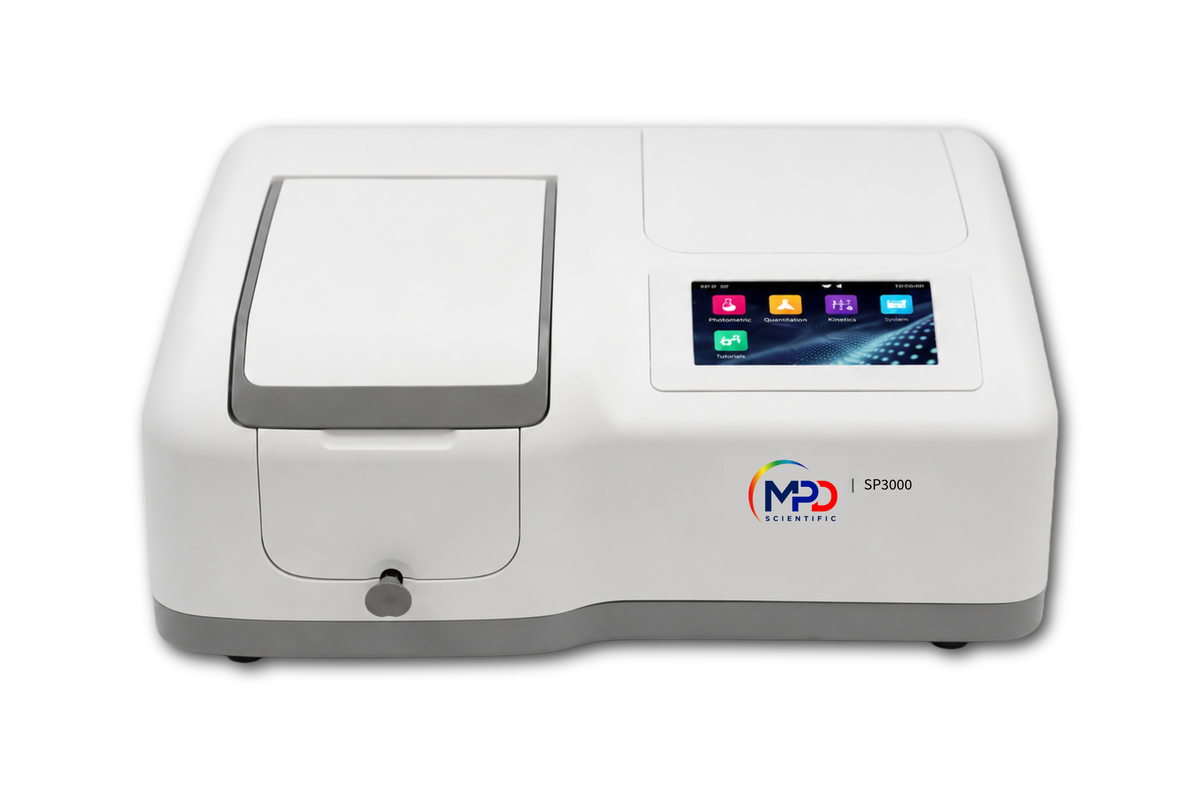

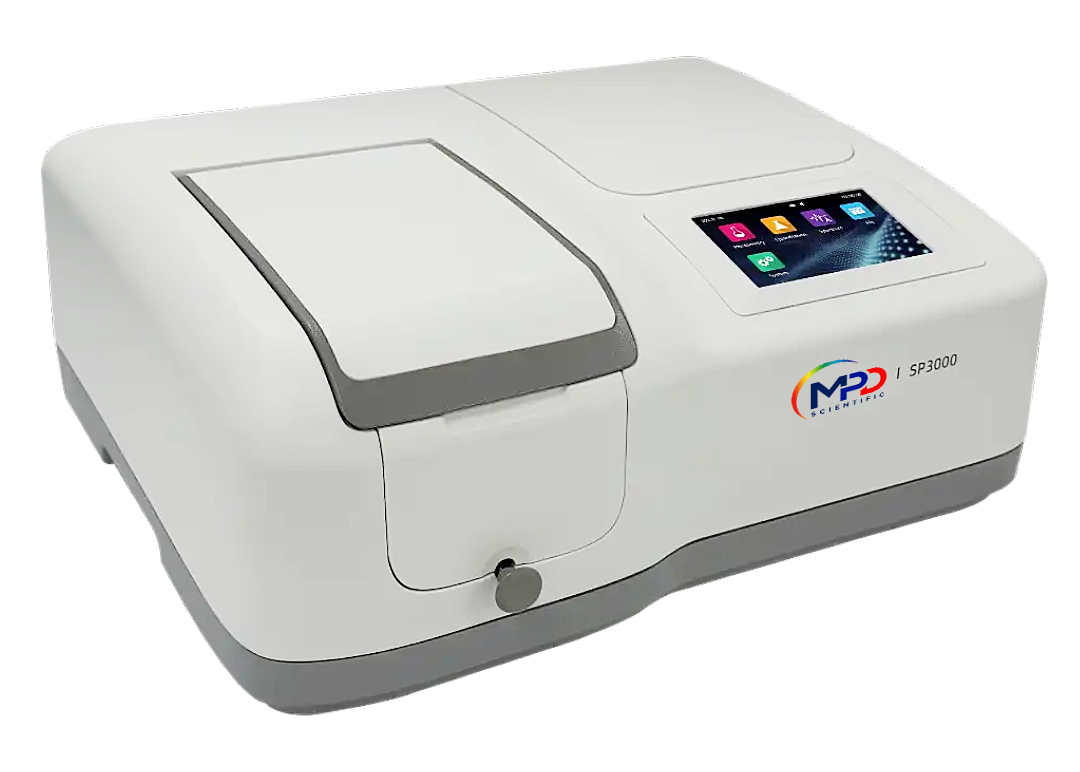

SP3000 Vis Spectrophotometer

Engineered for Accuracy, Built for Versatility.

$2,430.00

Specifications Description Applications Contact

The SP3000 is a high-performance single-beam UV-Vis spectrophotometer designed for laboratories that demand reliability, precision, and versatility. With a wavelength range of 320–1100 nm, a spectral bandwidth of 4 nm, and wavelength accuracy of ±0.5 nm, it delivers consistent and accurate results for a wide range of applications, from biochemical assays and material science to pharmaceutical testing and environmental analysis. Its variable scanning speed (20–4,200 nm/min), low stray light (≤0.05 %T @ 340 nm), and high photometric accuracy (±0.004 A @ 0.5–1 A) make it ideal for both routine and advanced analyses. Featuring a 5" TFT touchscreen, USB and RS232 connectivity, and a compact, lightweight design (10.5 kg), the SP3000 combines efficiency, precision, and ease of use in a single, dependable instrument.

Optical System	Single Beam
Light Source	Tungsten Halogen
Spectral Bandwidth	4 nm
Wavelength Range	320–1100 nm
Wavelength Accuracy	±0.5 nm
Wavelength Repeatability	≤0.2 nm
Wavelength Display Resolution	0.1 nm
Wavelength Scanning Speed	20–4,200 nm/min
Photometric Range	-0.3–3 A \| 0–200 %T \| 0–9999.9 C
Photometric Accuracy	±0.004 A (0.5–1 A); ±0.5 %T
Photometric Repeatability	≤0.002 A (0.5–1 A); ≤0.2 %T
Photometric Noise	≤0.0001 A @ 500 nm (RMS)
Baseline Drift	≤0.002 A/h @ 500 nm
Stray Light	≤0.05 %T @ 340 nm
Measurement Modes	Photometry, Quantitation, Scanning
Detector	Silicon Photodiode
Sample Holder	10 mm 4-cell manual changer
Display	5" TFT Color Touchscreen
Data Storage	236 KB built-in + USB expansion
Interfaces	RS232, USB-A, USB-B
Power Supply	100–240V AC, 50/60 Hz, 75 VA
Dimensions (W×D×H)	456 × 360 × 185 mm
Weight	10.5 kg

Key Features

Single-Beam UV-Vis Spectrophotometer
A robust and reliable single-beam design ensures consistent performance for a wide range of UV-Vis applications, offering an economical yet powerful solution for research, quality control, and educational environments.

Wavelength Range: 320–1100 nm
Covers the full visible spectrum and extends into the near-infrared, supporting a variety of applications, including biochemical assays, material analysis, and routine photometric testing.

Spectral Bandwidth: 4 nm
A 4 nm bandwidth provides dependable wavelength discrimination for standard laboratory assays, ensuring reproducible results across routine workflows.

Wavelength Accuracy: ±0.5 nm
Industry-leading accuracy guarantees precise wavelength selection, critical for applications requiring exact spectral matching.

Applications

The SP3000 is a versatile UV-Vis spectrophotometer designed for laboratories and institutions that require reliable, high-performance photometric analysis. In academic and research settings, it empowers scientists and students to conduct experiments ranging from biochemical assays and material characterization to kinetic studies and photometric analysis, thanks to its broad 320–1100 nm wavelength range and exceptional photometric accuracy.
