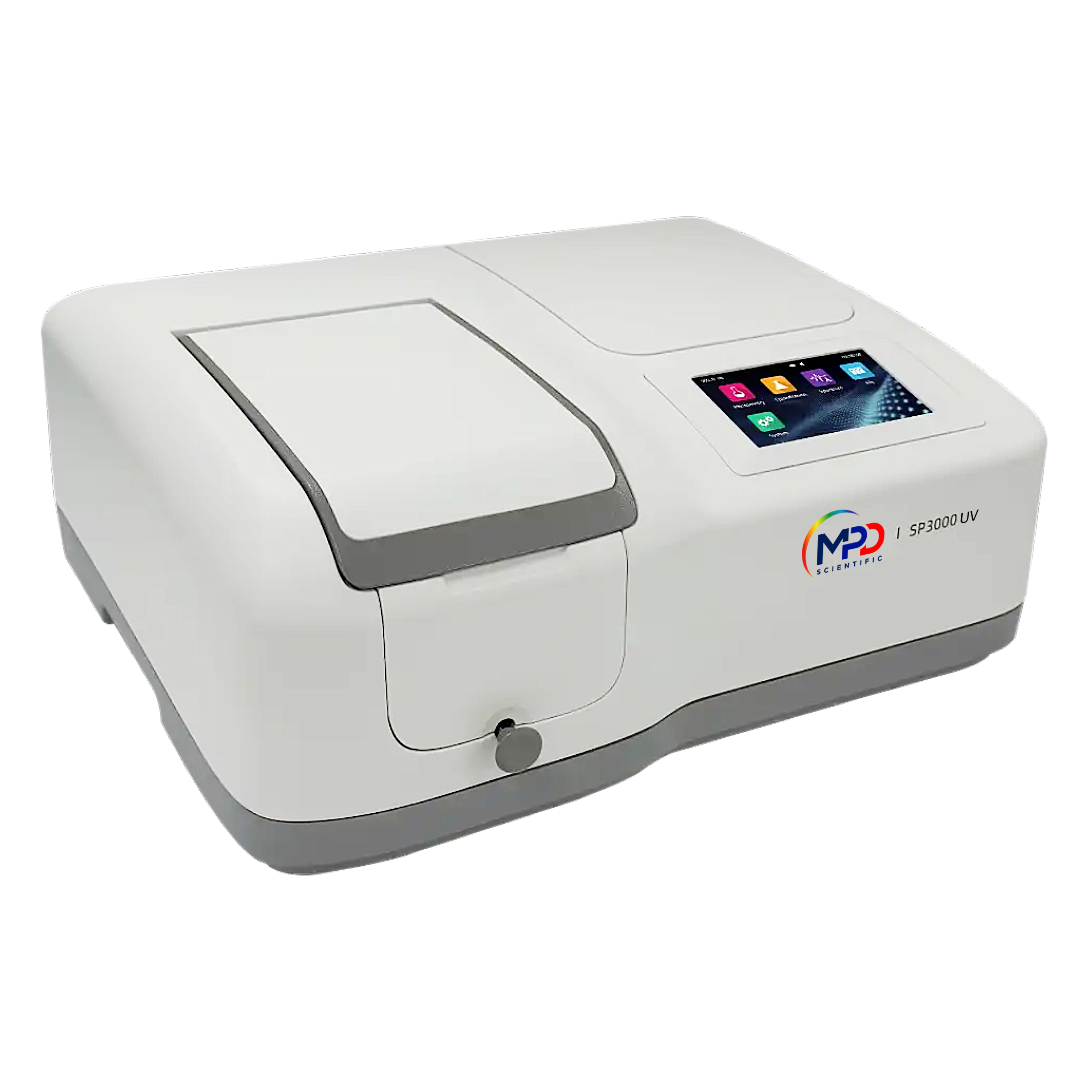

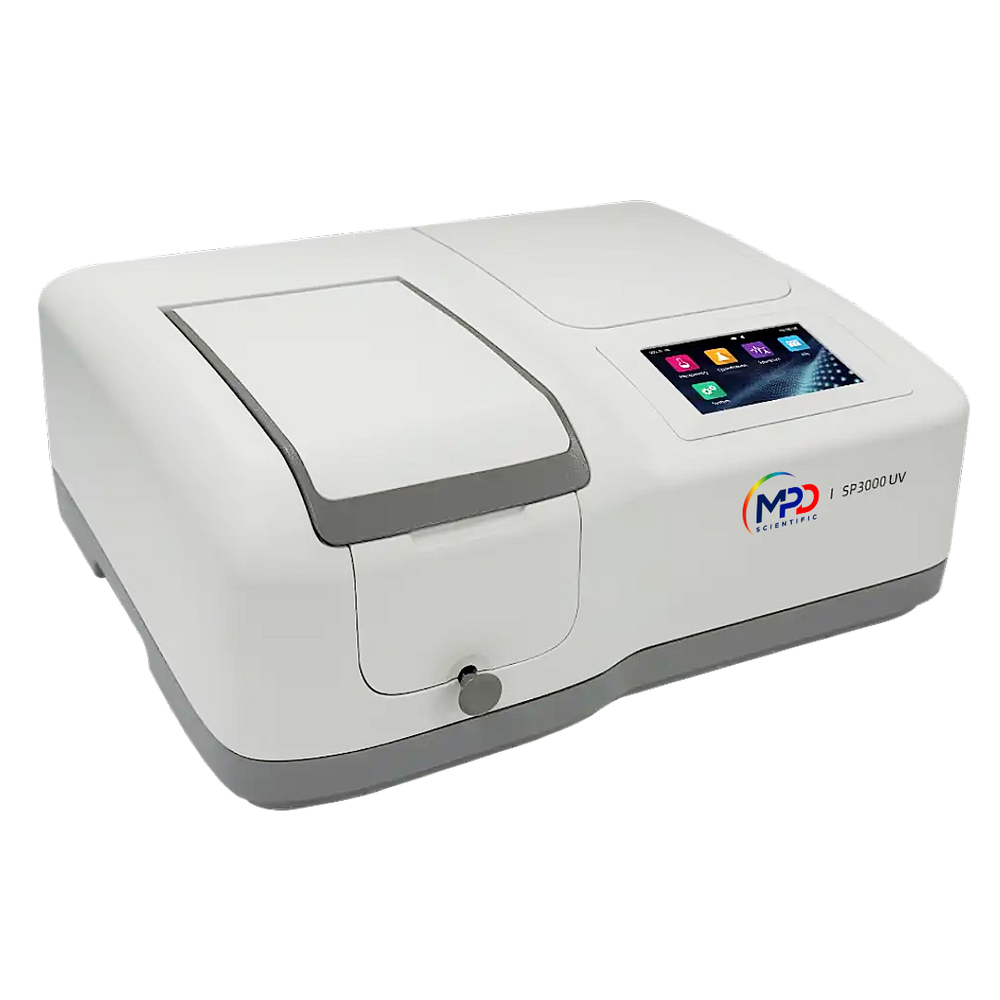

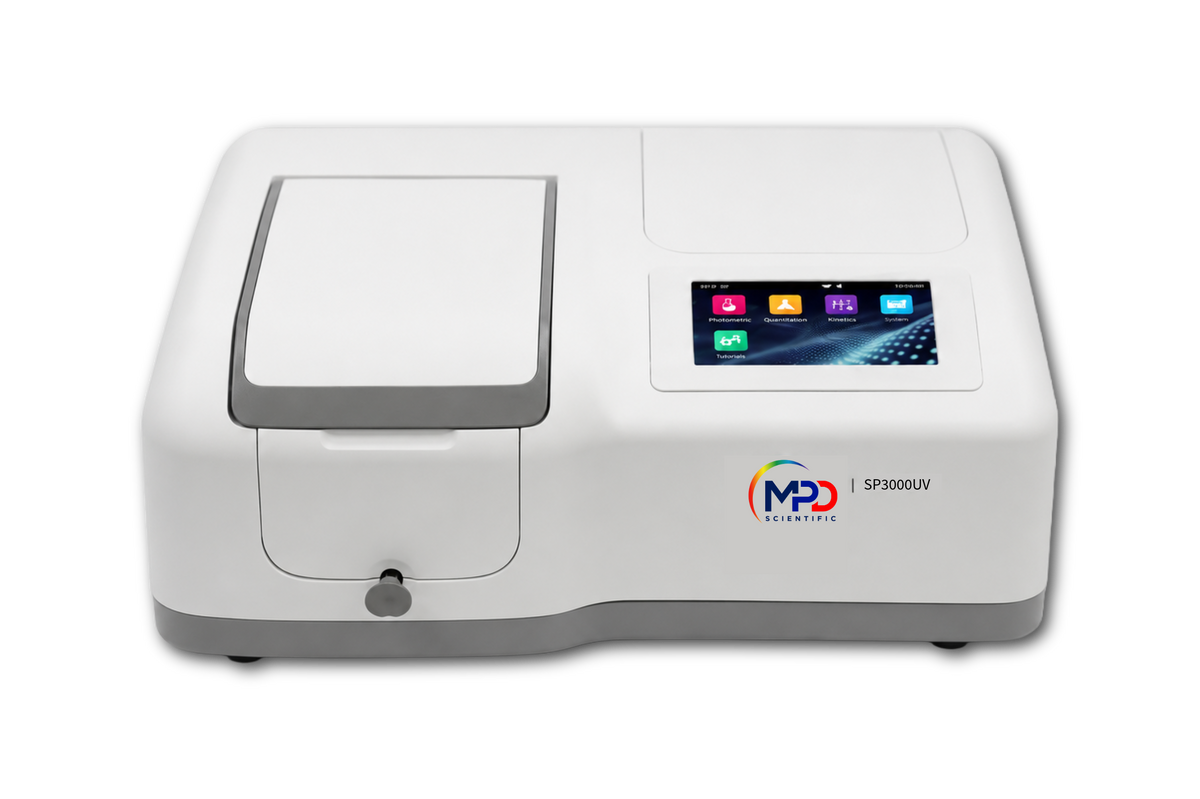

SP3000UV Spectrophotometer

SP3000UV Spectrophotometer

Precision Across the Spectrum
ISO 13485:2016 Certified FDA Registered Facility
$2,132.00
Estimated Delivery:Oct 04 - Oct 08
Guarantee safe & secure checkout

Overview

Broad Wavelength Range: Covers 190–1100 nm, enabling analysis from deep UV to near-infrared for versatile applications.

High Precision Optics: 4 nm spectral bandwidth and 0.1 nm wavelength resolution ensure sharp, accurate results.

Dual Light Source: Combines tungsten and deuterium lamps for reliable performance across the entire spectrum.

Versatile Measurement Modes: Supports photometry, quantitation, and scanning for a wide range of analytical needs.

Specifications

Optical System: Single Beam
Light Source: Tungsten / Deuterium
Spectral Bandwidth: 4 nm
Wavelength Range: 190–1100 nm
Wavelength Accuracy: ±0.5 nm (±0.3 nm @ 656.1 nm)
Wavelength Repeatability: ≤0.2 nm
Wavelength Resolution: 0.1 nm
Wavelength Scanning Speed (max): 10,000 nm/min
Wavelength Scanning Speed (variable): 20–4,200 nm/min
Photometric Range: -0.3–3 A | 0–200 %T | 0–9999.9 C
Photometric Accuracy: ±0.002 A (0.0–0.5 A); ±0.004 A (0.5–1 A); ±0.5 %T (0–100 %T)
Photometric Repeatability: ≤0.001 A (0.0–0.5 A); ≤0.002 A (0.5–1 A); ≤0.2 %T (0–100 %T)
Photometric Noise: ≤0.0001 A @ 0.0 A (500 nm, RMS)
Baseline Drift: ≤0.002 A/h @ 500 nm (2 hours after preheat)
Baseline Flatness: ±0.002 A
Stray Light: ≤0.05 %T @ 340 nm (NaNO₂); ≤0.05 %T @ 220 nm (NaI)
Measurement Modes: Photometry, Quantitation, Scanning
Detector: Silicon Photodiode
Sample Compartment: 10 mm 4-cell manual changer
Display: 5" TFT Color Touchscreen
Data Storage: 236 KB (built-in), unlimited via USB
Interfaces: RS232 ×1 (printer), USB-A ×1, USB-B ×1 (PC)
Power Supply: 100–240V AC, 50/60 Hz, 120 VA
Dimensions (W×D×H): 456 × 360 × 185 mm
Weight: 10.7 kg

Applications

SP3000UV Spectrophotometer


The SP3000UV is a high-performance UV-Vis spectrophotometer designed for laboratories and institutions that require precision, versatility, and reliability. In academic and research settings, it empowers scientists and students to conduct advanced experiments, from nucleic acid and protein analysis to kinetic studies and material characterization, thanks to its broad 190–1100 nm wavelength range and exceptional photometric accuracy.
