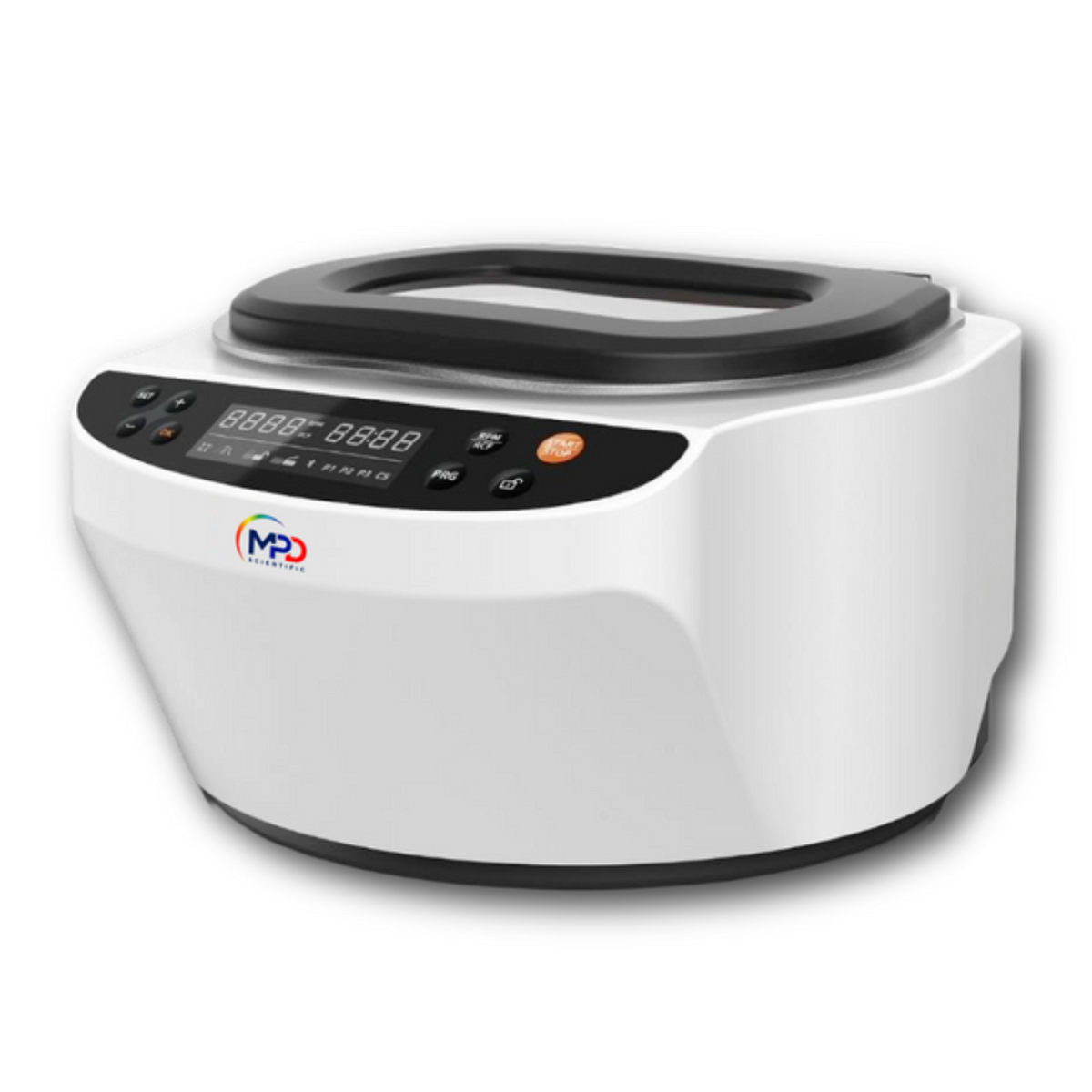

CL2345/CL2485 — Built for High-Throughput Labs
ISO 13485:2016 Certified FDA Registered Facility
$2,199.00
Estimated Delivery:Oct 04 - Oct 08
Guarantee safe & secure checkout

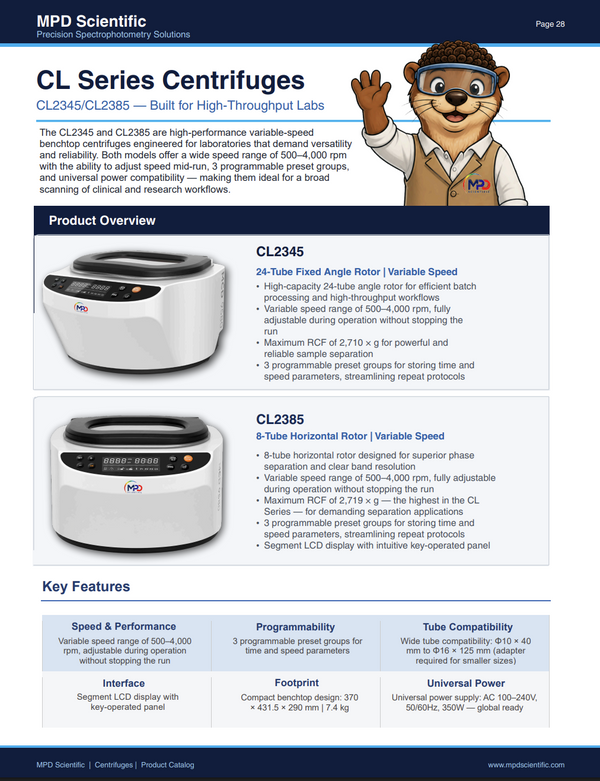

Overview

The CL2345 and CL2485 are high-performance variable-speed benchtop centrifuges engineered for laboratories that demand versatility and reliability. Both models offer a wide speed range of 500–4,000 rpm with the ability to adjust speed mid-run, 3 programmable preset groups, and universal power compatibility — making them ideal for a broad scanning of clinical and research workflows.

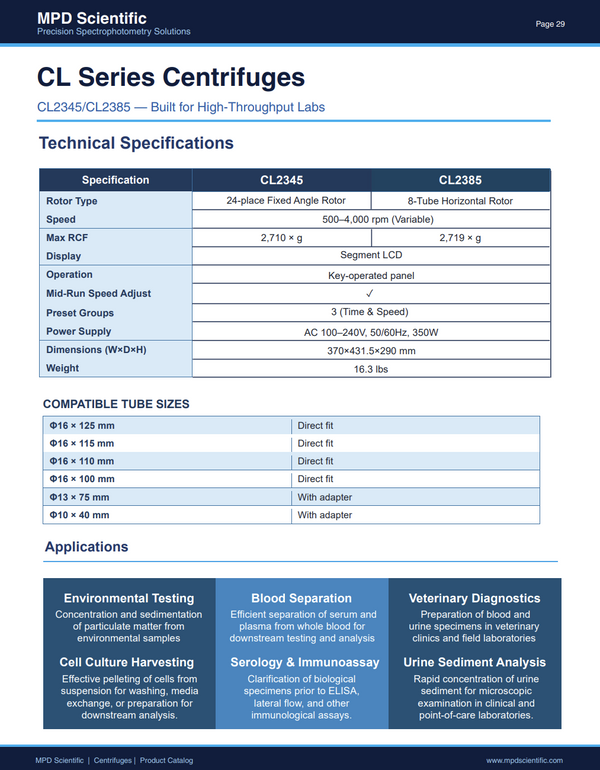

Specifications

Rotor Type: Horizontal swing-out rotor (8 place) or 24-Tube Fixed Angle rotor
Number of Positions: 8 or 24
Speed Range: 500–4,000 rpm (variable)
Maximum RCF: 2,719 × g
Speed Accuracy: Variable speed change adjustable during operation
Timer Range: Adjustable (Time/Speed preset programs)
Preset Programs: 3 groups — Time/Speed
Display: Segment LCD (speed, run time, program number, operating status)
Controls: Start/Stop, Speed Up/Down, Time Set, Program Select
Power Supply: AC 100–240V, 50/60Hz (auto-switching)
Power Consumption: 350W
Dimensions (W×D×H): 370×431.5×290mm
Weight: 7.4kg
Operating Temperature: 5–40°C
Relative Humidity: Max. 80% non-condensing
Rotor Chamber: Central drain for spill management
Lid Safety: Interlock — cannot be opened while rotor is in motion
Certification: CE
Warranty: 1 year limited

Applications

CL Series


The CL Series Benchtop Centrifuge is well suited for a wide range of routine and specialized laboratory separation tasks. Its variable speed range of 500–4000 rpm makes it effective for serum and plasma preparation from whole blood, cell and bacterial pelleting, protein precipitation, and DNA/RNA isolation workflows. The 8-place swing-out rotor provides uniform sedimentation ideal for density-gradient separations and gentle processing of fragile biological samples. Real-time speed adjustment supports protocol flexibility across molecular biology, biochemistry, and clinical sample preparation applications, while three programmable presets enable fast, repeatable method recall for high-throughput or multi-user environments.

Documents

MPD CL Series Product Manual
PDF
CL Series
PDF

Recommended Accessories

Centrifuge Tubes, 15ml, Sterile

Centrifuge Tubes, 15ml, Sterile

View →

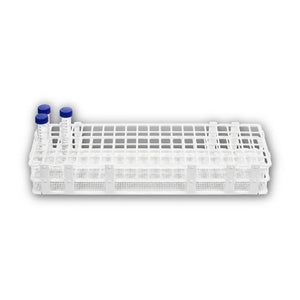

HKLS002 Plastic Tube Rack — 13mm, 90 Positions

HKLS002 Plastic Tube Rack — 13mm, 90 Positions

View →

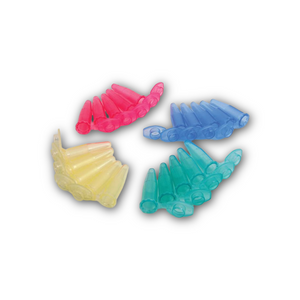

Micro Centrifuge Tubes, 1.5ml, Rainbow Pack

Micro Centrifuge Tubes, 1.5ml, Rainbow Pack

View →

Key Features

8-Place Horizontal Rotor

Designed for superior phase separation and clear band resolution

Variable Speed Range

500–4,000 RPM, fully adjustable during operation without stopping the run

Maximum RCF

2,719 × g — the highest in the CL Series — for demanding separation applications

High-capacity

24-tube Fixed Angle Rotor for efficient batch processing and high-throughput workflows

3 Programmable Preset Groups

For storing time and speed parameters, streamlining repeat protocols

Available Configurations

Select a configuration below to update your order.

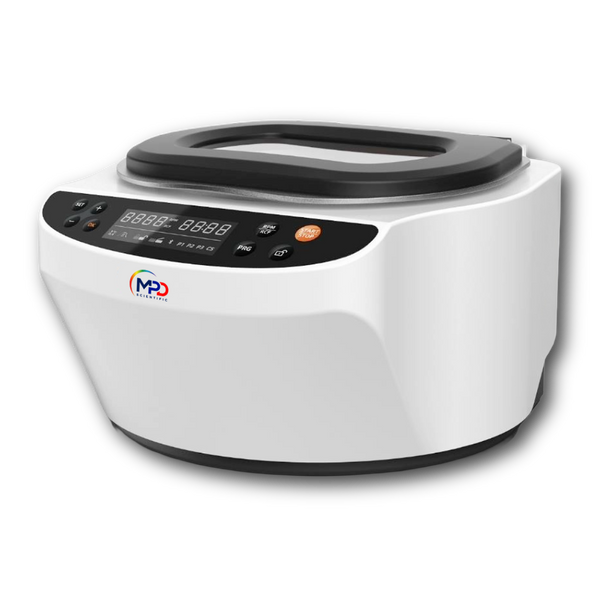

24-Place Fixed Angle Rotor | Variable Speed

CL2345

24-Place Fixed Angle Rotor | Variable Speed

  • High-capacity 24- Place angle rotor for efficient batch processing and high-throughput workflows
  • Variable speed range of 500–4,000 rpm, fully adjustable during operation without stopping the run

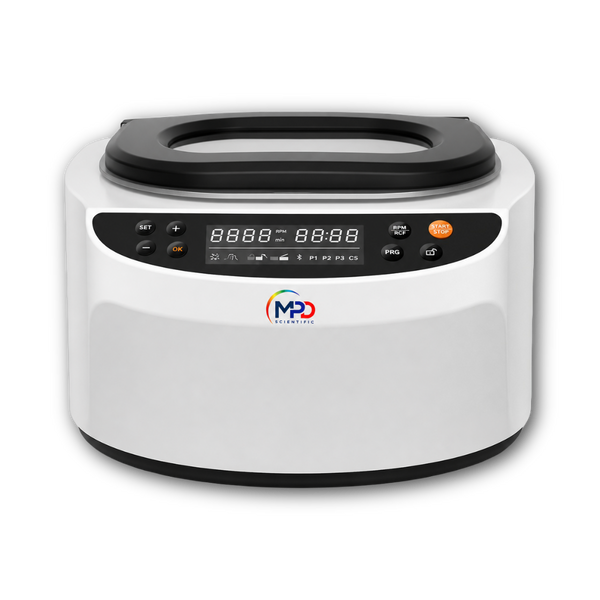

8-Place Horizontal Rotor | Variable Speed

CL2485

8-Place Horizontal Rotor | Variable Speed

  • 8- Place horizontal rotor designed for superior phase separation and clear band resolution
  • Variable speed range of 500–4,000 rpm, fully adjustable during operation without stopping the run
